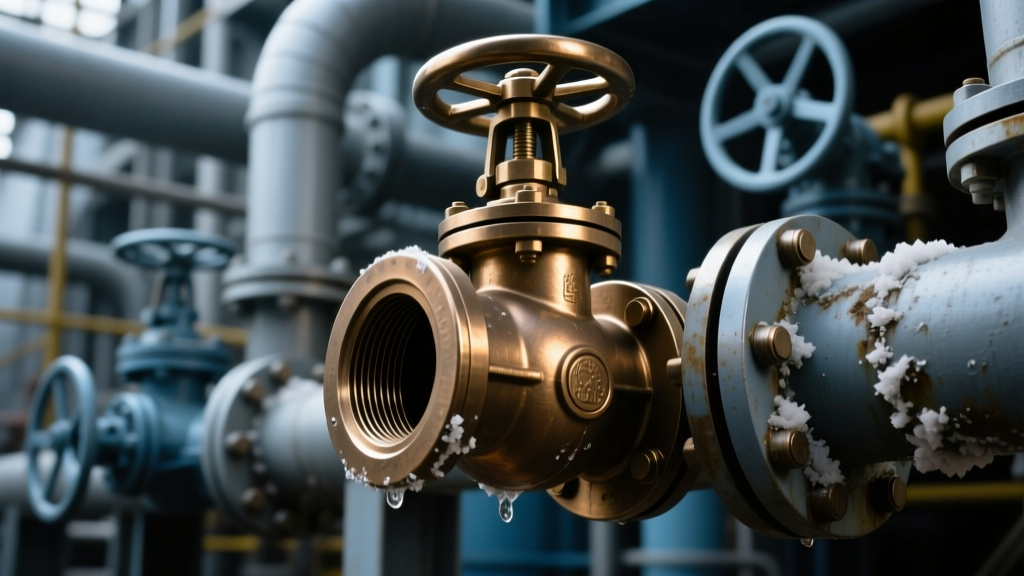

Why Your Marine System Is Failing (and How the Right Bronze Globe Valve Stops Saltwater Corrosion Before It Starts — Not All Bronze Valves Are Equal)
Why This Matters Right Now — Especially If You're in Marine, Offshore, or Coastal Infrastructure
The Bronze Globe Valve: Properties, Selection, and Applications. Everything about bronze globe valve including material properties, corrosion resistance, temperature limits, and ideal applications for corrosion resistance in marine and saltwater environments. isn’t just a niche component—it’s often the silent guardian preventing catastrophic seawater system failure. In 2023, the U.S. Coast Guard cited valve corrosion as a contributing factor in 17% of onboard hydraulic and bilge system failures on commercial fishing vessels—and over half involved misapplied or substandard bronze valves. Unlike stainless steel or plastic alternatives, bronze globe valves deliver a rare trifecta: predictable electrochemical behavior in chloride-rich environments, inherent resistance to dezincification when properly alloyed, and precise throttling control critical for cooling loops and ballast regulation. But here’s what most engineers overlook: not all ‘bronze’ is created equal—and selecting the wrong grade can accelerate corrosion by 3–5× under identical conditions.
Material Science Demystified: What ‘Bronze’ Really Means in Valve Specifications
‘Bronze’ is a marketing term—not an engineering specification. In valve manufacturing, it refers to copper-based alloys with varying zinc, tin, aluminum, silicon, or lead content. For marine-grade globe valves, only three ASTM-approved alloys meet ASME B16.34 and ASTM B148 standards for pressure-containing service: C95400 (aluminum bronze), C95800 (nickel-aluminum bronze), and C86300 (manganese bronze). Crucially, C83600 (red brass) and C85800 (leaded red brass) are not approved for globe valve bodies in high-pressure seawater service due to dezincification risk—even though they’re often sold as ‘marine bronze.’
Aluminum bronze (C95400) forms a self-healing, adherent Al₂O₃ oxide layer that resists pitting and crevice corrosion in aerated seawater up to 40°C. Nickel-aluminum bronze (C95800) adds nickel for enhanced resistance to impingement attack—critical where turbulent flow meets valve seats. Manganese bronze (C86300), while stronger, sacrifices some corrosion resilience for tensile strength and is best reserved for low-chloride brackish applications or non-critical isolation duties.
A real-world validation comes from a 2022 corrosion monitoring project aboard the NOAA research vessel Okeanos Explorer. Over 18 months, C95800 globe valves installed in the primary seawater cooling loop showed <0.002 mm/year uniform corrosion loss per ASTM G31 immersion testing—while adjacent C83600 gate valves exhibited localized dezincification pits >0.15 mm deep after just 9 months. The difference? Not environment—but metallurgy.
Corrosion Resistance: Beyond ‘Saltwater-Resistant’ Marketing Claims
True corrosion resistance isn’t binary—it’s a function of alloy composition, microstructure, water chemistry, flow velocity, and galvanic coupling. In marine environments, three failure modes dominate:
- Dezincification: Selective leaching of zinc from brass/bronze, leaving porous, weak copper residue. Accelerated by stagnant flow, low pH (<6.5), or high chloride (>15,000 ppm).
- Impingement Attack: Erosion-corrosion at high-velocity zones (e.g., globe valve stem tips or seat edges), especially with suspended solids or air entrainment.
- Galvanic Corrosion: When bronze contacts dissimilar metals (e.g., carbon steel pipe flanges or stainless steel bolts), creating an electrochemical cell. A 0.25 V potential difference between C95800 and 316 stainless steel means current flows—and bronze corrodes preferentially unless isolated.
To mitigate these, specify valves with die-cast or centrifugally cast bodies (not sand-cast)—which yield finer grain structure and lower porosity—and insist on ASTM B117 salt-spray test reports showing ≥1,000 hours to white rust for components. Also, require dielectric unions or non-conductive gaskets when connecting to carbon steel or stainless piping. As ASME B31.4 emphasizes, ‘material compatibility must be verified for the entire system—not just the valve body.’
Temperature & Pressure Limits: Why ASME B16.34 Ratings Aren’t Enough
ASME B16.34 assigns pressure classes (150, 300, 600, etc.) based on allowable stress values at defined temperatures—but those values assume continuous, steady-state operation. In reality, marine systems experience thermal cycling (e.g., engine room ambient swings from 15°C overnight to 45°C at noon), transient pressure spikes during pump start/stop, and intermittent flow. That’s why C95800 bronze globe valves rated for 300 psi at 150°F per B16.34 should be derated to 225 psi at 150°F for cyclic service—a 25% safety margin recommended by NACE SP0106 for offshore applications.
Maximum continuous service temperature for C95800 is 350°F—but above 250°F, creep becomes significant, and seat leakage increases measurably. Below freezing, standard PTFE seats embrittle; switch to reinforced elastomers like Hytrel® or Kalrez® for sub-zero coastal operations. And never exceed 200°F with C86300—its tensile strength drops 40% between 200°F and 300°F, risking stem deformation during throttling.
Selection Checklist: 7 Non-Negotiables for Marine & Saltwater Applications
Forget generic ‘marine grade’ labels. Use this field-proven checklist before specifying or purchasing:
- Verify ASTM Alloy Designation: Require mill test reports (MTRs) confirming C95800 or C95400—not just ‘85/15 bronze’ or ‘naval brass.’
- Check Casting Method: Die-cast or centrifugal casting only. Reject sand-cast bodies without ultrasonic testing (UT) certification per ASTM E213.
- Seat & Stem Material Match: Seats must be same alloy or harder (e.g., Stellite 6 overlay on C95800 seat ring); stems should be C95800 or UNS N07718 for high-cycle applications.
- Pressure-Temp Derating: Apply 25% derating for cyclic service per NACE SP0106; confirm vendor provides derated curves—not just B16.34 tables.
- Thread Standard Compliance: NPT threads must meet ASME B1.20.1; avoid metric-threaded imports unless certified to ISO 7-1 with proper thread engagement depth.
- Surface Finish: Internal surfaces polished to ≤0.8 µm Ra to minimize biofilm adhesion and crevice initiation sites.
- Third-Party Certification: Look for ABS, DNV-GL, or LR type approval—not just CE marking—which verifies actual seawater exposure testing.
| Property | C95800 (Ni-Al Bronze) | C95400 (Al Bronze) | C86300 (Mn Bronze) | C83600 (Red Brass) |
|---|---|---|---|---|
| Typical Composition | 82% Cu, 9% Al, 4% Ni, 4% Fe, 1% Mn | 82% Cu, 9% Al, 4% Fe, 5% Ni | 58% Cu, 28% Zn, 3% Al, 3% Mn, 3% Fe, 5% Pb | 85% Cu, 15% Zn |
| ASTM B148 Approval for Globe Valves | ✅ Yes | ✅ Yes | ✅ Yes (with limitations) | ❌ No |
| Max Continuous Temp (°F) | 350 | 350 | 200 | 250 |
| Seawater Corrosion Rate (mm/yr) | 0.001–0.003 | 0.002–0.005 | 0.008–0.015 | 0.02–0.12 (dezincifies) |
| Yield Strength (psi) | 35,000 | 32,000 | 45,000 | 22,000 |
| Ideal Application | Cooling loops, firemain, high-velocity seawater | Low-flow bilge, potable water, HVAC | Non-critical isolation, brackish water | Decorative, low-pressure freshwater only |
Frequently Asked Questions
Can I use a bronze globe valve in full-strength seawater if it’s labeled ‘marine grade’?
No—not automatically. ‘Marine grade’ is unregulated and often applied to C83600 red brass valves that fail rapidly in seawater due to dezincification. Always demand the ASTM alloy number (e.g., C95800) and third-party test reports—not marketing language. Per DNV-RP-F107, only C95400 and C95800 are qualified for permanent subsea seawater service.
What’s the biggest mistake engineers make when replacing failed bronze valves?
Assuming identical size and pressure class ensures compatibility. In reality, stem diameter, seat geometry, and internal flow path differ significantly between manufacturers—even within the same class. A replacement valve with 15% smaller flow area can increase velocity by 30%, accelerating impingement attack. Always match original OEM flow coefficients (Cv) and verify trim dimensions against the old valve.
Do I need special gaskets or seals for bronze globe valves in saltwater?
Yes—especially for long-term reliability. Standard EPDM or nitrile gaskets degrade in seawater within 12–18 months. Specify Viton® (FKM) or ethylene propylene diene monomer (EPDM) with NSF/ANSI 61 certification for potable systems. For high-temp firemain, use compressed non-asbestos fiber (CNAF) gaskets rated to 500°F. Never use graphite-filled gaskets with bronze—they promote galvanic corrosion.
How often should bronze globe valves be inspected in offshore platforms?
Per API RP 14E, critical seawater service valves require visual inspection every 6 months and functional testing (full open/close + leak check) annually. Ultrasonic thickness testing of body walls is mandatory every 3 years—or after any incident involving pressure surge or impact damage. Note: C95800 shows no measurable wall loss below 0.005 mm/yr, so extended intervals may be justified with documented history.
Is there a cost-effective alternative to C95800 for budget-constrained projects?
Not for primary seawater circuits—but C95400 offers ~20% cost savings with only marginal trade-offs in impingement resistance. Avoid ‘bronze-plated’ or ‘bronze-finish’ valves entirely: they offer zero corrosion protection. As ASME B16.34 Annex C warns, ‘coated or plated components shall not be substituted for solid alloy construction in corrosive service.’
Common Myths
Myth #1: “All bronze valves resist saltwater equally.”
Reality: C83600 red brass valves corrode 10–20× faster than C95800 in ASTM D1141 synthetic seawater tests. Dezincification begins within weeks—not years—when exposed to chlorides.
Myth #2: “Higher pressure rating means better corrosion resistance.”
Reality: Pressure class reflects mechanical strength—not electrochemical stability. A Class 600 C83600 valve fails faster in seawater than a Class 150 C95800 valve because alloy integrity—not wall thickness—dictates longevity.
Related Topics (Internal Link Suggestions)
- Stainless Steel vs. Bronze Globe Valves for Seawater — suggested anchor text: "stainless steel vs bronze globe valve seawater"
- How to Read ASTM Alloy Numbers on Valve Nameplates — suggested anchor text: "how to read bronze valve ASTM numbers"
- Globe Valve Maintenance Schedule for Offshore Rigs — suggested anchor text: "offshore globe valve maintenance checklist"
- Dezincification Testing Methods for Brass and Bronze — suggested anchor text: "dezincification test for bronze valves"
- ASME B16.34 Pressure-Temperature Ratings Explained — suggested anchor text: "ASME B16.34 bronze valve ratings"
Your Next Step: Audit One Critical Valve Today
You don’t need to replace every valve tomorrow—but you do need to verify the alloy and condition of your single most critical seawater globe valve: likely the one feeding your engine cooling circuit or fire suppression pump. Pull its nameplate photo, cross-check the ASTM number against our comparison table, and run a quick visual for white powdery deposits (early dezincification) or pitting near the seat. If it’s C83600 or unlabeled—schedule replacement with C95800 before your next dry dock. Because in marine systems, corrosion isn’t a ‘maybe’—it’s a countdown. Start yours with certainty, not guesswork.
