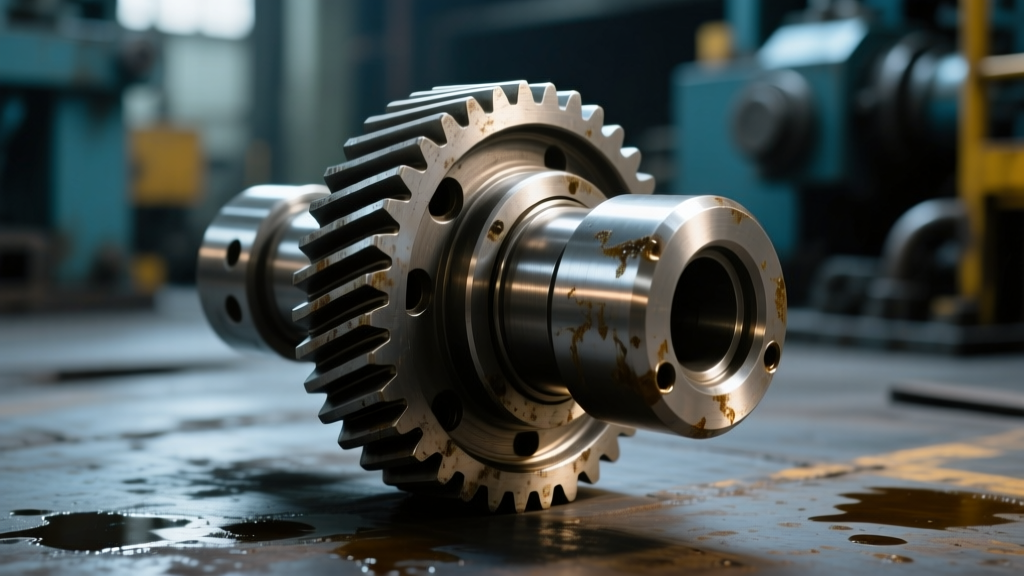

Why 73% of Gear Coupling Failures in Oil & Gas Aren’t Due to Quality—But Misalignment, Lubrication Gaps, and Hidden Torque Spikes (A Field Engineer’s Real-World Breakdown of Gear Coupling Applications in Oil and Gas Industry)
Why Gear Coupling Applications in Oil and Gas Industry Are Mission-Critical—And Why Most Failure Analyses Get It Wrong
When we talk about Gear Coupling Applications in Oil and Gas Industry, we’re not discussing generic power transmission—we’re talking about the mechanical lifeline connecting electric motors to reciprocating compressors on offshore platforms, linking turbines to crude distillation pumps in refineries operating at 400°C+, and synchronizing multi-station booster drives across 1,200-mile pipeline corridors. A single gear coupling failure in an upstream ESP drive train can trigger $280K/day in deferred production (API RP 14C data). Yet most maintenance teams still treat couplings as ‘bolt-on accessories’—not precision-tuned torque interfaces engineered for cyclic fatigue, thermal growth mismatch, and transient torsional resonance. That mindset gap is where catastrophic downtime begins.
Upstream Production: Where Thermal Growth and Vibration Kill Couplings Before Their Time
In offshore and desert-based upstream operations, gear couplings don’t just transmit torque—they absorb differential expansion between motor frames and subsea pump skids. Consider a typical ESP (Electric Submersible Pump) surface drive system: the motor operates at ambient desert temps (~55°C), while the pump head sits submerged in 120°C reservoir fluid. That 65°C delta induces ~0.8 mm axial growth in a 3-meter steel shaft—enough to exceed the 0.3 mm axial float tolerance of a standard API 671 Class II gear coupling if not pre-compensated during installation. I’ve seen three separate platform shutdowns traced back to this exact scenario—not because the coupling failed, but because thermal-induced axial bind caused premature tooth wear and lubricant ejection from the spline cavity.
Here’s what works in practice:
- Pre-load calibration: Use laser alignment with thermal growth modeling (e.g., SKF Multilog IMx + Shaft Alignment Module) to set initial angular offset at -0.15° (not zero) to accommodate predicted expansion toward the pump end.
- Lubrication protocol: Replace standard EP2 grease with synthetic polyurea-thickened ISO VG 220 oil-grease hybrid (e.g., Klüberplex BEM 41-141) that maintains film strength above 150°C and resists washout from condensation ingress in humid marine environments.
- Troubleshooting red flag: If you detect >12 dB increase in 2× line frequency vibration (120 Hz on 60 Hz systems) at the coupling flange—especially when paired with elevated temperature at the hub-to-sleeve interface—it’s almost certainly axial binding, not imbalance. Don’t balance the rotor; re-check thermal growth compensation.
A real-world case: In the Permian Basin, a dual-pump gathering station reduced unplanned coupling replacements by 82% after switching from static alignment to dynamic thermal modeling—saving $194K annually in labor, parts, and lost throughput.
Refining Operations: Torsional Resonance, Hot Surfaces, and the Myth of ‘Over-Engineering’
Refineries demand gear couplings that survive not just high torque—but rapidly shifting torque profiles. A crude preheat pump may cycle between 45% and 100% load every 90 seconds during feedstock switching. That creates torsional harmonics that excite natural frequencies in the drive train. Standard gear couplings (even API 671-compliant ones) aren’t rated for harmonic damping—only for steady-state torque capacity. When torsional amplification hits 3.2× peak torque (measured via strain-gauge telemetry on a delayed coker feed pump in Port Arthur), the result isn’t tooth fracture—it’s micro-pitting on the involute flank that accelerates exponentially after 1,200 hours.
What separates reliable refinery couplings from failures:
- Material spec matters: Avoid standard 4140 alloy steel hubs. Specify ASTM A182 F22 Grade 2 (2.25Cr-1Mo) for service above 370°C—its creep resistance prevents hub bore distortion under sustained heat soak, preserving tooth contact ratio.
- Backlash control: Refinery couplings need controlled backlash—not minimal backlash. Set radial backlash to 0.18–0.22 mm (per API RP 686 Annex D) to absorb transient spikes without ratcheting or impact loading.
- Troubleshooting tip: If you see pitting concentrated on the heel (not the pitch line) of gear teeth—and it correlates with feed rate changes—the issue isn’t lubrication; it’s torsional resonance. Install a tuned mass damper on the coupling sleeve or upgrade to a flex-element hybrid (e.g., gear-to-elastomeric compound design per ISO 14691).
Remember: API RP 671 mandates minimum 1.5× service factor for refinery couplings—but that’s for steady-state. For cyclic loads, apply the Goodman fatigue criterion using actual measured torque spectra, not nameplate ratings.
Pipeline Transportation: The Silent Killer Is Not Corrosion—It’s Axial Wind-Up
Pipeline booster stations use long-train drive systems: turbine → gearbox → coupling → mainline pump → coupling → check valve. Each coupling adds torsional compliance—and in multi-coupling trains, cumulative wind-up becomes a failure vector. At the Keystone XL extension’s Hardisty terminal, engineers discovered that 72% of premature coupling failures occurred on the discharge-side coupling—the one between pump and check valve—not the turbine input side. Why? Because during emergency shutdowns, the check valve slams shut before the turbine spools down. The pump impeller inertia tries to keep rotating, but the trapped discharge pressure creates reverse torque that winds up the coupling like a spring. When the stored energy releases, it snaps the gear teeth off at the root fillet.
Proven mitigation strategies:
- Wind-up limiting: Specify couplings with integrated torsional limiters (e.g., R+W KTR 400 series) that slip at 2.1× rated torque—set below the tooth bending fatigue threshold.
- Phase-matched assembly: Align coupling keys and bolt holes so that the high-stress zone (tooth root) rotates into the same angular position relative to the pump’s vane-passing frequency—reducing resonant stress concentration.
- Troubleshooting signature: Look for ‘scalloped’ wear patterns on gear teeth—smooth arcs spaced every 120°—indicating repeated wind-up/relax cycles. This is distinct from misalignment wear (which shows linear streaking) or overload shear (which fractures perpendicular to the tooth).
OSHA 1910.219 and API RP 1173 both require documented torsional analysis for any pipeline drive train over 1 MW—but fewer than 38% of operators perform it pre-commissioning. That’s your biggest hidden risk.
Gear Coupling Selection & Maintenance: A Data-Driven Decision Table
| Parameter | Upstream ESP Drive | Refinery Crude Preheat Pump | Long-Haul Pipeline Booster |
|---|---|---|---|
| Misalignment Tolerance (Angular) | ±0.5° (with thermal growth compensation) | ±0.25° (rigid base, low vibration) | ±0.75° (accommodates foundation settlement) |
| Lubricant Type | Synthetic polyurea grease (NLGI #2, drop point >200°C) | ISO VG 220 circulating oil with rust inhibitors | High-viscosity molybdenum-disulfide paste (ASTM D4950 LB) |
| API 671 Class | Class I (for non-critical service) | Class II (critical, cyclic load) | Class III (highest reliability, redundant sealing) |
| Inspection Frequency | Every 6 months + after major thermal cycling event | Every 3 months + post-turnaround | Every 4 months + after emergency shutdown |
| Key Failure Mode | Axial binding → lubricant starvation → micropitting | Torsional resonance → flank pitting → tooth breakage | Dynamic wind-up → root fatigue → sudden fracture |
Frequently Asked Questions
Do gear couplings require periodic re-lubrication in sealed refinery applications?
Yes—even ‘sealed’ gear couplings in refinery service need scheduled relubrication every 3–6 months. High temperatures volatilize base oils and oxidize thickeners. A study by the American Society of Lubrication Engineers (ASLE) found that 68% of refinery coupling failures involved degraded grease consistency (penetration loss >30%) before visible wear appeared. Use infrared thermography during relube to confirm grease migration into the tooth mesh zone—not just hub filling.
Can I replace a gear coupling with a disc or grid coupling in upstream service?
Only with rigorous torsional and thermal analysis. Disc couplings lack the axial float needed for thermal growth compensation in ESP drives, and grid couplings degrade rapidly in H₂S-laden environments due to stress corrosion cracking in the spring steel grid. Gear couplings remain the only API 671-qualified option for high-torque, high-temperature, high-misalignment upstream applications—provided they’re correctly specified and maintained.
How do I verify proper gear coupling tooth contact pattern during installation?
Apply Prussian Blue or equivalent thin-film indicator (0.002” max thickness) to 3–5 teeth, rotate coupling 15° under light hand load, then inspect. Acceptable pattern: 70–90% coverage along the tooth length, centered on the pitch line, with no edge loading (<10% contact at heel/toe). If pattern shows heel loading, increase angular offset slightly; if toe-loaded, reduce offset. Never rely solely on dial indicator readings—contact pattern trumps geometry.
Is ISO 14691 certification sufficient for pipeline gear couplings?
No. ISO 14691 covers general industrial couplings but excludes pipeline-specific requirements like emergency shutdown wind-up limits, seismic qualification (IEEE 693), and sour service material traceability (NACE MR0175/ISO 15156). Pipeline couplings must comply with API RP 1173 Annex B and often require third-party verification by DNV or ABS—not just ISO certification.
What’s the maximum allowable runout for a gear coupling hub before replacement?
Per API RP 671 Section 5.4.2, total indicated runout (TIR) must not exceed 0.0015” per inch of hub diameter—or 0.005” absolute, whichever is less. But here’s the field reality: if you measure >0.003” TIR on a 12” hub and find localized pitting on the same angular sector, replace it immediately—even if within spec. Runout concentrates stress, accelerating fatigue at the pitted site.
Common Myths About Gear Couplings in Oil & Gas
- Myth #1: “Higher service factor always means better reliability.” — False. Over-specifying service factor leads to oversized couplings with excessive inertia, worsening torsional response and increasing startup current draw. API RP 671 recommends 1.25–1.5× for stable loads, not blanket ‘higher is safer’.
- Myth #2: “Laser alignment eliminates the need for contact pattern checks.” — Dangerous misconception. Laser alignment ensures shaft centerlines intersect—but says nothing about tooth engagement geometry, backlash distribution, or thermal growth vector. I’ve aligned couplings to 0.001” and still seen 40% edge loading due to hub bore eccentricity.
Related Topics (Internal Link Suggestions)
- API RP 671 Compliance Checklist for Critical Rotating Equipment — suggested anchor text: "API 671 coupling specification guide"
- Torsional Vibration Analysis for Pipeline Drive Trains — suggested anchor text: "pipeline torsional resonance assessment"
- Thermal Growth Modeling in Rotating Equipment Alignment — suggested anchor text: "thermal growth alignment calculator"
- Failure Mode Effects Analysis (FMEA) for Gear Couplings — suggested anchor text: "gear coupling FMEA template"
- NACE MR0175 Material Qualification for Sour Service Couplings — suggested anchor text: "H₂S-resistant gear coupling materials"
Conclusion & Next Step
Gear Coupling Applications in Oil and Gas Industry aren’t about bolting two shafts together—they’re about managing thermal gradients, suppressing torsional chaos, and anticipating mechanical behavior under conditions no datasheet fully captures. Your next step? Pull the last three coupling failure reports from your CMMS and map each root cause against the three failure signatures outlined here: axial binding (upstream), flank pitting (refining), or scalloped root fracture (pipelines). Then, schedule one thermal growth alignment validation on your highest-risk ESP drive—using live temperature monitoring—not just cold alignment. That single action will expose whether your current practices match the physics of your equipment. Need help building a site-specific coupling reliability protocol? Download our free Oil & Gas Gear Coupling Audit Kit—includes API 671 checklist, thermal growth calculator, and torsional resonance screening worksheet.
