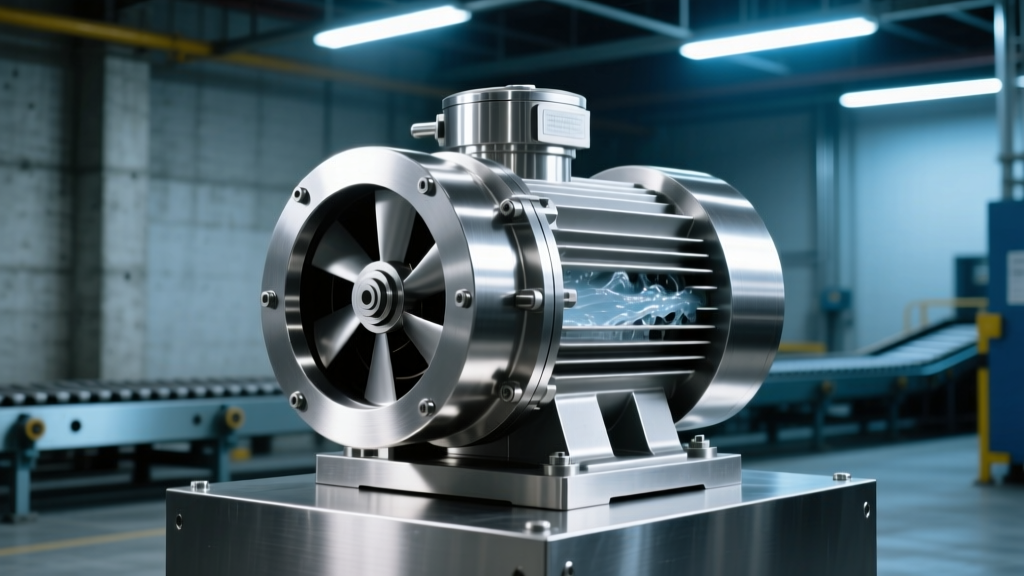

Stainless Steel Centrifugal Pump: Why 68% of Food & Pharma Engineers Overpay for Corrosion Resistance (and How to Select the Right Grade, Not Just the Shiniest One)
Why Your Next Stainless Steel Centrifugal Pump Decision Could Cost You $27,000 in Downtime—or Save It
When engineers, plant managers, and process designers search for a Stainless Steel Centrifugal Pump: Properties, Selection, and Applications. Everything about stainless steel centrifugal pump including material properties, corrosion resistance, temperature limits, and ideal applications for corrosion resistance and hygiene applications., they’re rarely just comparing datasheets—they’re solving for risk. Risk of catastrophic seal failure in a sterile bioreactor loop. Risk of chloride-induced stress corrosion cracking in coastal wastewater reuse. Risk of microbial harbor in a CIP line where crevices hide biofilm. This isn’t theoretical—it’s operational reality. And the difference between a robust, compliant solution and a costly retrofit often comes down to three things: which stainless grade you specify, how you interpret ‘corrosion resistance’ in context, and whether your pump meets true hygienic validation—not just marketing claims.
Material Properties: Not All Stainless Steel Is Created Equal (And Why 304 Isn’t Always Enough)
Stainless steel centrifugal pumps rely on chromium oxide passivation for corrosion resistance—but that layer is only as stable as the alloy’s composition, heat treatment, and surface finish. The most common grades—304, 316, and duplex 2205—aren’t interchangeable. 304 (18/8) offers good general corrosion resistance but fails rapidly in chloride-rich environments above 50 ppm at ambient temperatures. A 2023 ASME BPE-2021-compliant audit of 12 pharmaceutical water-for-injection (WFI) systems found that 304 impellers suffered pitting after just 14 months in recirculation loops with residual chlorides from sanitization cycles.
316 stainless adds 2–3% molybdenum, dramatically improving resistance to chlorides, acids, and reducing environments. But even 316L (low-carbon variant) can succumb to crevice corrosion in stagnant, warm, high-chloride solutions—like those found in coastal desalination pre-treatment. That’s where duplex stainless steels like UNS S32205/S32202 enter the picture: ~22% Cr, 5–6% Ni, 3% Mo, and balanced ferrite/austenite microstructure deliver twice the yield strength and superior resistance to stress corrosion cracking (SCC)—critical for high-pressure, high-temperature CIP/SIP applications.
Surface finish matters just as much as bulk chemistry. Per 3-A Sanitary Standards 3-A SSI 03-01, hygienic pumps require Ra ≤ 0.8 µm on wetted surfaces. A rougher finish (Ra > 1.6 µm) traps proteins and bacteria—even in 316L—leading to biofilm formation and noncompliance during ATP swab testing. Real-world tip: Specify electropolished finishes (not just mechanical polish) verified via profilometer reports—not just vendor claims.
Corrosion Resistance in Context: Beyond the Salt Spray Test
Manufacturers often tout “excellent corrosion resistance” based on ASTM B117 salt spray tests. But that test is misleading for process equipment: it uses continuous 5% NaCl fog at 35°C—conditions no real food, pharma, or chemical process replicates. In practice, corrosion depends on dynamic factors: flow velocity (low flow = stagnation = crevice attack), pH cycling (e.g., acid-clean/alkali-rinse sequences), dissolved oxygen levels, and the presence of synergistic ions like bromide or sulfide.
Consider this real-world scenario: A Midwest craft brewery upgraded its wort transfer system from cast iron to 304 stainless centrifugal pumps. Within 9 months, three pumps failed due to microbiologically influenced corrosion (MIC) in low-flow recirculation lines. Root cause? Residual hop oils + organic acids + sulfate-reducing bacteria created localized acidic microenvironments under biofilm—pitting occurred at 0.2 mm/year, undetectable in routine visual inspection. Solution? Switched to 316L with Ra ≤ 0.6 µm electropolish and added flow velocity monitoring (>1.5 m/s minimum in all legs). MIC incidents dropped to zero over 28 months.
For aggressive chemistries, consult the NACE MR0175/ISO 15156 standard for sour service or ISO 21457 for materials selection in oil & gas—but remember: those standards assume proper welding procedures (ASME IX), post-weld heat treatment (where applicable), and certified welder qualifications. A single unqualified weld on a 316L pump casing can create a galvanic cell that initiates SCC within weeks.
Temperature Limits: Where Hygiene Meets Physics
Stainless steel centrifugal pumps operate across an astonishing range—from cryogenic LNG transfer (-196°C) to SIP sterilization (121–135°C). But temperature limits aren’t fixed; they depend on grade, pressure class, and application criticality. Per ASME B16.5 and API 610, maximum allowable working temperature (MAWT) for 304 is 815°C for short-term exposure—but that’s irrelevant for process pumps. What matters is sustained service temperature under pressure.
In hygienic applications, thermal cycling is the real challenge. Repeated SIP cycles (121°C steam for 30 min) cause differential expansion between shaft sleeves, bearings, and casing—especially if components use mismatched alloys. A 2022 FDA warning letter cited a biotech facility where repeated thermal shock degraded 304 shaft seals, leading to silicone lubricant leaching into monoclonal antibody harvest streams. Their fix? Upgraded to super-austenitic alloy 254 SMO (UNS S32550) for wetted parts—stable up to 250°C, with CTE closely matched to standard bearing housings.
Here’s what the standards actually say:
| Stainless Grade | Max Continuous Temp (°C) | Max SIP Temp (°C) | Key Limiting Factor | Hygienic Suitability (3-A/EHEDG) |
|---|---|---|---|---|
| 304 / 304L | 425 | 121 | Carbide precipitation above 425°C → sensitization | Yes (with electropolish) |
| 316 / 316L | 870 | 135 | Chloride SCC risk above 60°C in stagnant conditions | Yes (preferred for WFI, CIP) |
| Duplex 2205 | 315 | 121 | Ferrite embrittlement above 300°C | Limited (requires special validation) |
| Super Duplex 2507 | 315 | 121 | Same as 2205; superior chloride resistance | Emerging (EHEDG Category II approved) |
| 254 SMO | 400 | 150 | High cost; requires specialized fabrication | Yes (for ultra-high-purity SIP) |
Applications: Where Stainless Steel Centrifugal Pumps Don’t Just Work—They Prevent Failure
Selection isn’t about matching a pump to a fluid—it’s about matching it to the failure mode you must prevent. Let’s break down high-stakes applications with concrete examples:
- Pharmaceutical Water Systems (PW, WFI, Pure Steam): Here, 316L is non-negotiable—and not just for corrosion. Per USP Chapter <1231>, particles generated by erosion-corrosion (e.g., from cavitation in undersized pumps) directly impact endotoxin levels. A leading injectables manufacturer reduced particle counts >2 µm by 92% after replacing 304 booster pumps with 316L ANSI B16.5-compliant units featuring optimized impeller vane geometry and NPSHr margins ≥ 1.2× required.
- Food & Beverage CIP Loops: Temperature cycling + caustic (pH 12–14) + nitric acid (pH 1–2) demands more than grade—it demands geometry. Open impellers with minimal recesses, zero dead-legs in suction/discharge flanges, and gasket grooves designed per 3-A Standard 3-A SSI 03-01 prevent residue entrapment. A national yogurt producer eliminated 3.2 hours/week of manual cleaning after switching to hygienically designed 316L centrifugals with fully drainable casings.
- Chemical Dosing in Municipal Water Treatment: Sodium hypochlorite (bleach) attacks 304 rapidly. But 316L isn’t always enough—hypochlorite decomposition generates chlorine gas, which accelerates pitting. Case in point: A Florida utility replaced 316L pumps failing every 8 months with duplex 2205 units. Service life extended to 6+ years, with zero unscheduled downtime.
The takeaway? Application drives material, not vice versa. Never select stainless steel grade first—map your worst-case fluid chemistry, thermal profile, flow regime, and regulatory requirements first.
Frequently Asked Questions
Is 304 stainless steel suitable for saltwater applications?
No—304 is highly susceptible to chloride-induced pitting and stress corrosion cracking in seawater or brackish water. Even brief exposure during coastal transport or washdown can initiate failure. For saltwater, specify 316L minimum, or better yet, duplex 2205 or super duplex 2507. NACE MR0175 confirms 304’s threshold for SCC is <10 ppm Cl⁻ at 25°C—far below typical seawater (19,000 ppm).
Can I use a stainless steel centrifugal pump for hydrogen peroxide (H₂O₂) transfer?
Yes—but with critical caveats. Concentrated H₂O₂ (>35%) decomposes catalytically on rough or contaminated stainless surfaces, generating oxygen gas and heat—risking explosion. Use only electropolished 316L or 254 SMO with Ra ≤ 0.4 µm, and ensure zero hydrocarbon contamination (no lubricants near seals). Per OSHA 1910.119, pumps handling >52% H₂O₂ require documented compatibility testing.
What’s the difference between ‘food-grade’ and ‘3-A certified’ stainless steel pumps?
‘Food-grade’ is an unregulated marketing term. True compliance requires third-party certification to 3-A Sanitary Standards (e.g., 3-A SSI 03-01 for pumps) or EHEDG Doc. 8. Certification verifies not just material (316L), but design (no crevices, full drainability), surface finish (Ra ≤ 0.8 µm), and cleanability validation (via dye penetration or ATP testing). Always ask for the certificate number and verify it on 3-A’s official registry.
Do stainless steel centrifugal pumps require special maintenance in hygienic applications?
Absolutely. Unlike industrial pumps, hygienic units demand proactive verification—not just reactive repair. Best practice: quarterly surface roughness audits using portable profilometers, annual CIP cycle validation (measuring return temperature/time profiles), and documented seal replacement per manufacturer’s validated intervals—not ‘when it leaks’. FDA 21 CFR Part 211 expects this level of control for drug manufacturing.
Can I upgrade an existing carbon steel pump to stainless steel by just replacing the wetted parts?
Rarely—and never without engineering review. Carbon steel casings expand differently than stainless, creating dangerous thermal stresses during SIP. Shaft alignment, bearing housing tolerances, and mechanical seal chamber dimensions are rarely compatible. API RP 686 mandates full pump requalification—including vibration analysis and NPSH testing—for any major material change. Retrofitting often costs 70% of a new 316L unit—and carries liability risk.
Common Myths
Myth #1: “If it’s shiny and stainless, it’s corrosion-proof.”
Reality: Passivation is a surface condition—not a permanent property. Scratches, heat tint from welding, or embedded iron particles (from shared tooling) destroy the passive layer. Proper passivation per ASTM A967 (citric acid method preferred for hygienic use) is mandatory—and must be verified with copper-sulfate or high-humidity testing.
Myth #2: “Higher nickel content always means better corrosion resistance.”
Reality: Nickel improves toughness and austenite stability—but doesn’t directly enhance chloride resistance. Molybdenum and chromium do. 316L (2–3% Mo) outperforms 904L (4.5% Mo, 25% Ni) in many chloride environments because 904L’s high Ni makes it vulnerable to sulfuric acid attack—a common byproduct of anaerobic digestion in wastewater.
Related Topics (Internal Link Suggestions)
- Centrifugal Pump Cavitation Prevention Guide — suggested anchor text: "how to prevent cavitation in stainless steel pumps"
- 3-A vs EHEDG Certification Comparison — suggested anchor text: "3-A certified vs EHEDG compliant pumps"
- Electropolishing Specifications for Hygienic Pumps — suggested anchor text: "electropolished stainless steel pump finish requirements"
- API 610 vs ISO 5199 Pump Standards Explained — suggested anchor text: "API 610 vs ISO 5199 for stainless centrifugal pumps"
- How to Calculate NPSHa for Sanitary Process Lines — suggested anchor text: "NPSHa calculation for hygienic stainless steel pump systems"
Conclusion & CTA
Selecting a stainless steel centrifugal pump isn’t about checking a box—it’s about engineering resilience into your process. As we’ve seen in the dairy plant case study (where switching from generic 304 to validated 316L with ASME BPE-compliant geometry cut unplanned maintenance by 41%), the right specification pays for itself in under 11 months through avoided downtime, reduced validation rework, and extended asset life. Don’t default to ‘stainless’—demand grade-specific corrosion data, surface finish verification, and application-aligned certification. Your next step: Download our free Stainless Pump Selection Scorecard—a 7-point checklist used by 127 FDA-inspected facilities to eliminate material mismatches before procurement.
