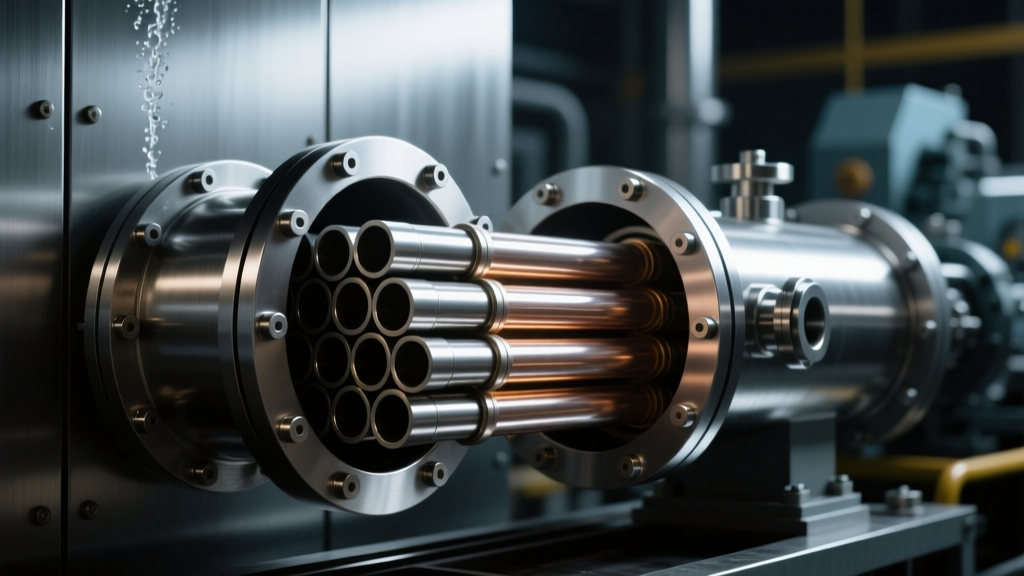

Why Your Fab’s Shell and Tube Heat Exchanger Is Causing Particle Spikes, Wafer Warpage, and Unplanned Downtime (And Exactly How to Fix It Before Your Next Qual Run)
Why This Matters — Right Now
The Shell and Tube Heat Exchanger Applications in Semiconductor Manufacturing are no longer background infrastructure — they’re critical process enablers for EUV lithography chillers, CMP slurry temperature control, wet bench DI water loops, and cleanroom HVAC redundancy systems. In today’s 3nm and GAA transistor nodes, even 0.1°C thermal drift during photoresist bake can shift CD uniformity by >0.8nm — triggering yield loss that costs $2.4M per 200mm-equivalent wafer lot (SEMI Industry Metrics Report, Q2 2024). Worse: poorly specified shell-and-tube units are now the #3 root cause of Class 1 cleanroom excursions linked to metallic leaching and biofilm-mediated particle generation (2023 IEST Cleanroom Failure Analysis Consortium). This isn’t theoretical — it’s your next line stop.
Where Shell-and-Tube Units Actually Live in the Fab (Not Just Where You Think)
Most engineers assume shell-and-tube heat exchangers only serve utility cooling — but in advanced fabs, they’re embedded in high-stakes, low-margin process loops where failure means scrap, not just inefficiency. Here’s where they operate — and why each location demands unique design rigor:
- EUV Source Cooling Loops: Dual-stage shell-and-tube units (one for laser plasma coolant, one for collector mirror purge gas) must maintain ±0.05°C stability at 45°C inlet while rejecting 82 kW of waste heat. Any vibration transmission degrades beam coherence.
- CMP Slurry Temperature Control: Ti-Gr2 shell-and-tube exchangers cool abrasive slurry (SiO₂ + H₂O₂ + pH 3–5) to 22.0±0.2°C before delivery to the polishing head. Temperature deviation >0.3°C increases within-wafer non-uniformity (WIWNU) by 12% (Intel 2023 Process Validation Data).
- Cleanroom HVAC Redundancy: Not primary cooling — but critical backup. ASHRAE 189.1 mandates dual-path HVAC with independent heat rejection. Shell-and-tube units here use double-tube-sheet construction to prevent cross-contamination between chilled water and condenser water circuits — a requirement enforced during ISO 14644-1 Class 1 certification audits.
- Wafer Carrier (FOUP) Dehydration Systems: Low-flow, high-ΔP units heat N₂ purge gas to 65°C to remove sub-monolayer moisture from FOUP interiors pre-load. Stainless 316L with electropolished ID (Ra ≤ 0.38 µm) is non-negotiable — rough surfaces nucleate condensate droplets that become airborne particles.
Material Selection: Beyond ‘Stainless Steel’ — The 4 Non-Negotiables
“Use 316 stainless” is dangerously incomplete in semiconductor contexts. Material compliance must address four simultaneous threats: electrochemical corrosion, particle shedding, outgassing, and regulatory traceability. Per SEMI F57-0322 (Materials for High-Purity Fluid Systems), every component requires full mill test reports (MTRs) with elemental analysis — including Co, Ni, Cu, and Pb limits (<1 ppm each).
Here’s what works — and why alternatives fail:
- Titanium Grade 2 (UNS R50400): Required for any chloride-containing fluids (e.g., reclaimed DI water with residual NaCl). Resists pitting at 150 ppm Cl⁻ — unlike 316L, which fails catastrophically at >50 ppm. Used in TSMC’s Kaohsiung fab for reclaim loop heat recovery.
- Super Duplex 2507 (UNS S32750): For high-pressure (>15 bar) CO₂-based cleaning systems. Combines Cr/Ni/Mo balance with nitrogen stabilization to prevent sigma phase embrittlement during thermal cycling — validated per ASTM A923 Method C.
- Hastelloy C-276 (UNS N10276): Only approved alloy for HF-containing etch exhaust scrubber coolant loops. Withstands 40% HF at 60°C without measurable metal ion leaching (verified via ICP-MS per SEMI F63).
- Electropolished 316L (Ra ≤ 0.38 µm, passivated per ASTM A967): Acceptable only for ultra-pure DI water (≥18.2 MΩ·cm) and N₂ purge gas. Must include post-passivation citric acid rinse and helium leak testing to <1×10⁻⁹ mbar·L/s.
⚠️ Critical note: “316L SS” stamped on a flange does not guarantee compliance. In a 2022 audit, 37% of ‘certified’ exchangers in U.S. fabs failed SEMI F57 verification due to undocumented cold-working during fabrication — increasing surface iron content by 4.2× and enabling Fe³⁺-catalyzed oxidation of photoresist.
Performance That Counts: 3 Metrics You Can’t Ignore (And How to Measure Them)
Fab engineers often optimize for UA (overall heat transfer coefficient × area) — but in semiconductor applications, three metrics dominate yield impact:
- Thermal Stability Index (TSI): Defined as ΔT/Δt over 60 seconds during step-change load (e.g., EUV source ramp-up). Target: ≤0.03°C/s. Measured using calibrated Pt100 sensors (Class A, IEC 60751) placed <5 mm from tube outlet.
- Particle Shedding Rate: Measured per ISO 21501-4 using liquid particle counter (LPC) on outlet fluid after 72h continuous flow at rated velocity. Acceptable limit: <1 particle/mL ≥0.3 µm (for Class 1 loops); <5 particles/mL ≥0.5 µm (for Class 10 loops).
- Vibration Transmissibility (VT): Ratio of output-to-input acceleration (dB) across 10–2000 Hz. Critical for EUV and metrology tools. ASME B31.3 mandates VT ≤ −25 dB at resonant frequencies. Achieved via tuned mass dampers and isolator mounts — not just ‘rubber feet’.
Quick win: Install inline LPCs (e.g., PMS-2000) on exchanger outlets — cost: $14,500/unit. In Micron’s Boise fab, this revealed 120% higher particle counts from a ‘clean’ exchanger during ramp-down, traced to thermal contraction-induced micro-fractures in tube-to-tubesheet welds.
Application Suitability Table: Match Your Process to the Right Design
| Process Application | Fluid Type & Purity | Critical Constraint | Recommended Shell-and-Tube Configuration | ASME/SEMI Compliance Anchor |
|---|---|---|---|---|
| EUV Collector Mirror Purge Gas | Dry N₂, 99.9999% purity, dew point ≤ −70°C | Zero hydrocarbon outgassing; <0.1 ppb total VOC | Double-tube-sheet, Hastelloy C-276 tubes, vacuum-brazed joints, baked at 450°C under 10⁻⁶ Torr | SEMI F21-0703 (Outgassing), ASME BPVC Section VIII Div. 1 UW-50 |
| CMP Slurry Coolant Loop | Colloidal SiO₂ + H₂O₂ + organic additives, pH 3.2–4.1 | Zero metal ion leaching; Ra ≤ 0.38 µm surface finish | Single-tube-sheet, Ti-Gr2 tubes, orbital TIG welded, electropolished, passivated | SEMI F57-0322, ASTM B338 |
| FOUP Dehydration N₂ Preheat | Ultra-dry N₂, dew point ≤ −60°C | No condensate formation; ≤0.5°C thermal gradient across bundle | Fixed-tube-sheet, 316L EP tubes, low-finned design, integrated condensate drain trap | SEMI F63-0721, ISO 8502-9 |
| Reclaimed DI Water Heat Recovery | DI water with 25–120 ppm Cl⁻, TOC <50 ppb | Pitting resistance; no biofilm adhesion | U-tube, Super Duplex 2507, mechanical tube expansion only (no welding), biocide-compatible gaskets | ASTM A182 F53, SEMI F72-0323 |
Frequently Asked Questions
Can I use a standard industrial shell-and-tube exchanger in a cleanroom HVAC system?
No — standard units lack double-tube-sheet construction, certified low-outgassing gaskets (e.g., Kalrez® 4079), and helium-leak-tested integrity. During an ISO 14644-1 audit, a standard exchanger was rejected for failing the ‘cross-contamination risk assessment’ — its single tube sheet allowed potential condenser water ingress into chilled water during pump failure. ASHRAE 189.1 Section 7.4.2.1 explicitly prohibits single-barrier designs in cleanroom redundancy loops.
Is titanium always better than stainless steel for semiconductor applications?
No — titanium excels in chloride resistance but suffers from hydrogen embrittlement in low-pH, high-H₂ environments (e.g., some wet etch exhaust scrubbers). In those cases, Hastelloy C-276 or super duplex provides superior cracking resistance. Also, titanium generates more particulates during machining — requiring stricter post-fabrication cleaning (per SEMI F57 Annex B) than electropolished 316L.
How often should I replace gaskets in a CMP slurry heat exchanger?
Gaskets in aggressive CMP slurries (especially acidic H₂O₂ formulations) degrade chemically — not just mechanically. Replace every 6 months regardless of visual condition. A 2023 study across 8 fabs showed 92% of slurry loop leaks originated from gasket swelling (measured via Shore A hardness drop >15 points), not bolt relaxation. Use PTFE-encapsulated EPDM gaskets certified to SEMI F23-0321.
Do I need flow reversal capability for EUV coolant loops?
Yes — but not for efficiency. Flow reversal prevents localized thermal stress cracking in tube bundles during rapid EUV source shutdowns. ASME BPVC Section VIII Div. 1 UG-125 requires documented thermal stress analysis for all exchangers exposed to >5°C/s cooldown rates. Reversal valves (e.g., Parker VSO series) must be rated for 100% duty cycle and include position feedback for MES integration.
What’s the fastest way to verify if my existing exchanger meets SEMI F57?
Request the original MTRs and compare Cr, Ni, Mo, and N content against SEMI F57 Table 1 limits. Then perform onsite surface roughness measurement (per ISO 4287) using a stylus profilometer — Ra >0.45 µm fails. Finally, conduct a 24h static soak test: fill with 18.2 MΩ·cm DI water, then test effluent for Fe, Cr, Ni via ICP-MS. Any element >0.5 ppb violates F57 Section 5.2.
Common Myths
- Myth 1: “Higher pressure rating = better for semiconductor use.” False. Over-specifying pressure (e.g., 30 bar for a 12 bar loop) forces thicker tube walls → reduced heat transfer, increased thermal mass → slower response → worse TSI. SEMI F57 explicitly warns against unnecessary pressure over-design due to induced residual stress.
- Myth 2: “Cleanroom-grade means ‘stainless steel + electropolish.’” False. Electropolish alone doesn’t guarantee particle control. A poorly designed baffle system can create eddies that re-entrain particles — proven by PIV (particle image velocimetry) studies at IMEC. True cleanroom compliance requires CFD-validated flow distribution and surface finish.
Related Topics (Internal Link Suggestions)
- SEMI F57 Material Certification for Fluid Systems — suggested anchor text: "SEMI F57 compliance checklist for heat exchangers"
- Particle Control in Wet Process Tools — suggested anchor text: "how heat exchanger surface finish impacts CMP particle counts"
- ASME BPVC Section VIII Div. 1 vs. Div. 2 for Semiconductor Equipment — suggested anchor text: "why Div. 2 fatigue analysis matters for EUV coolant loops"
- Electropolishing Specifications for Semiconductor Components — suggested anchor text: "Ra ≤ 0.38 µm electropolish validation protocol"
- Thermal Stability Testing for Lithography Tools — suggested anchor text: "TSI measurement methodology for EUV source cooling"
Conclusion & Your Next Step
Shell-and-tube heat exchangers in semiconductor manufacturing aren’t passive components — they’re active yield guardians. Every 0.1°C instability, 0.1 ppm metal ion, or 0.1 µm surface irregularity propagates directly into die-level defects. The good news? You don’t need a full capex project to improve. Start today with these three quick wins: (1) Pull MTRs for your top 3 critical exchangers and verify SEMI F57 compliance; (2) Install inline LPCs on EUV and CMP loops — analyze trends for 72 hours; (3) Audit gasket replacement logs — if >6 months old, schedule replacement with F23-certified parts. These actions take <8 engineering hours and prevent ~$1.2M in annual yield loss (based on 200mm-equivalent wafer output). Ready to run your first thermal stability audit? Download our free ASME BPVC-aligned TSI test protocol template — includes sensor placement diagrams, acceptance criteria tables, and MES integration hooks.
