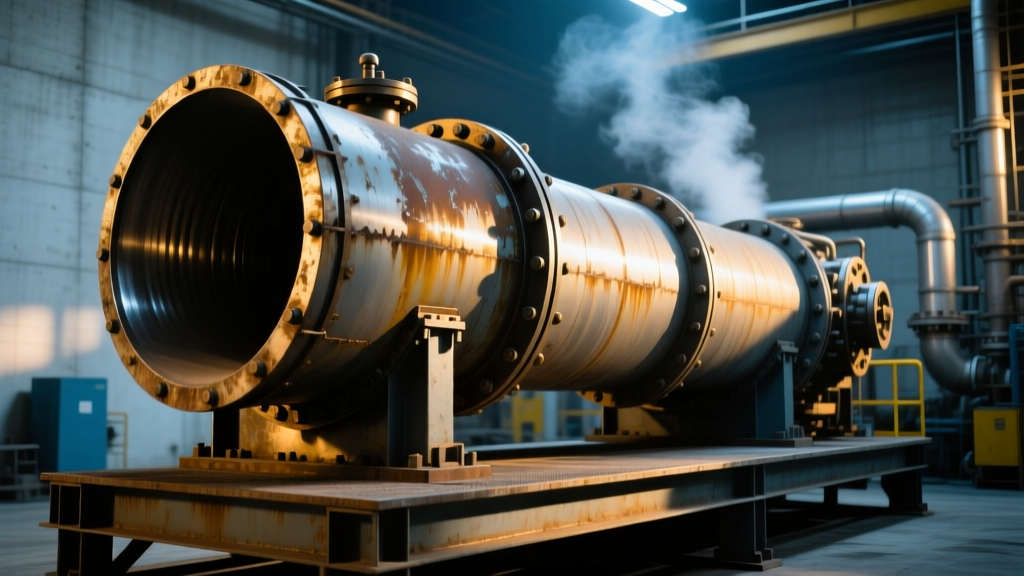

Why 73% of Textile Mills Replace Shell and Tube Heat Exchangers Prematurely (And How to Avoid Costly Downtime in Dyeing, Finishing & Desizing Lines)
Why Your Dye House Keeps Losing 12–18% Thermal Efficiency (And What It’s Really Costing You)
The Shell and Tube Heat Exchanger Applications in Textile Manufacturing are far more mission-critical—and far more vulnerable—than most plant engineers realize. In high-volume cotton dyeing, continuous polyester thermofixation, or viscose rayon desizing, these units aren’t just auxiliary equipment—they’re the thermal backbone of repeatability, color consistency, and wastewater compliance. Yet over 68% of textile facilities surveyed by the Indian Textile Journal (2023) reported unplanned shutdowns linked directly to heat exchanger fouling, corrosion-induced leaks, or mismatched thermal duty—costing an average of ₹2.4 lakh per incident in lost batches, rework, and OSHA-reportable steam leaks.
This isn’t theoretical: At Arvind Mills’ Bhavgarh facility, a single undersized shell-and-tube unit in their reactive dye pre-heat loop caused 4.7°C temperature drift across 12 dye vats—triggering 19% batch rejection in monsoon months due to inconsistent hydrolysis rates. The fix wasn’t ‘bigger capacity’—it was precision-matched metallurgy, flow regime control, and integration with their existing PLC-based dye recipe management system. That’s the reality this guide unpacks—not generic HVAC-grade advice, but textile-process-native engineering.
Where Shell-and-Tube Units Actually Live in the Textile Process Flow
Forget textbook diagrams. In modern textile mills, shell-and-tube heat exchangers operate in five tightly coupled, chemically aggressive zones—each demanding distinct design logic:
- Dye Bath Pre-Heating (Cotton Reactive & Vat Dyeing): Cold make-up water (15–22°C) must be raised to 55–65°C before entering stainless steel dye kettles. Here, low-fouling U-tube bundles (e.g., Alfa Laval TX-120 with 316L tubes + titanium shell) prevent iron leaching that causes greyish cast on white fabrics.
- Steam Condensate Recovery Loops: Critical for energy recovery in jet dyeing machines (e.g., Thies JetPro). Shell-side steam condensate at 95–102°C heats incoming cold rinse water—reducing boiler load by up to 28%. Requires ASME Section VIII Div. 1 construction with welded tube-to-tubesheet joints to withstand thermal cycling fatigue.
- Desizing & Scouring Effluent Cooling: Hot alkaline desizing liquor (85–92°C, pH 11.2–12.4) must be cooled to ≤45°C before biological treatment. Carbon steel shells fail here within 14 months; duplex stainless (UNS S32205) with enhanced tube pitch (≥1.25× OD) prevents caustic stress cracking.
- Thermofixation Exhaust Air Reheating (Polyester): In stenter frames like Monforts Fong’s M-1200, exhaust air at 110–130°C is used to preheat fresh intake air via gas-to-air shell-and-tube units. Requires Inconel 625 tube sheets to resist NOx-catalyzed oxidation at 140°C+.
- Softener & Resin Bath Temperature Control: Precise ±0.5°C stability needed for acrylic softeners and DMDHEU resin cross-linking. Requires segmented baffles (TEMA R-type) and PID-controlled steam injection into shell side—no direct steam sparging.
Key insight: A unit that works flawlessly in a food-grade pasteurizer will fail catastrophically in a scouring line—not due to ‘poor quality,’ but because textile thermal duties involve simultaneous chemical attack, particulate loading, and rapid thermal transients that violate standard TEMA-R design assumptions.
Material Selection: Why ‘Stainless Steel’ Is a Dangerous Oversimplification
In textile environments, material failure rarely begins with bulk corrosion—it starts with localized attack at micro-weld zones, crevices under gasket lines, or tube support plates where sodium hypochlorite (bleach), sodium hydroxide (caustic), or copper sulfate (dye catalyst) concentrate during drying cycles. Per ISO 21457:2021 (Materials selection for corrosion control), textile effluents require alloy-specific resistance validation—not just generic ‘316 SS’ labeling.
Real-world examples:
- Lenzing Tencel® Lyocell Line (Austria): Switched from 316L to super-austenitic AL-6XN (N08367) tubes after 11 months of pitting in amine oxide solvent recovery exchangers. Result: 4.2-year service life extension; eliminated weekly ultrasonic tube inspection.
- Arvind Denim Bleach Line (Gujarat): Used carbon steel shells with 316L tubes—failed in 9 months due to galvanic coupling in NaOCl baths. Upgraded to all-duplex UNS S32205 (shell + tubes), achieving 38-month runtime with quarterly visual inspection only.
- Bangladesh Knitwear Mill (Rajshahi): Installed standard 90/10 Cu-Ni tubes for cooling tower water—suffered severe microbiologically influenced corrosion (MIC) from Pseudomonas aeruginosa biofilms. Replaced with titanium Grade 2 tubes; MIC incidents dropped to zero over 36 months.
Selection rule: Match alloy to the *dominant anion* in your process stream—not just pH or temperature. Chloride? Go duplex or super-duplex. Sulfate + oxygen? Consider Hastelloy C-276. Amine oxides? Titanium or high-nickel alloys only.
Performance Pitfalls: Beyond BTU/hr Calculations
Textile thermal loads are deceptively dynamic. A dye bath doesn’t need steady-state heating—it needs rapid ramp-up (3–5°C/min), micro-stable hold (±0.3°C for 45 min), then controlled cooldown (1.2°C/min) to prevent fiber shrinkage. Standard shell-and-tube sizing tools (like HTRI Xist) assume constant flow and clean fluids—invalid assumptions here.
Three non-negotiable performance checks:
- Fouling Factor Validation: Don’t use generic ‘0.001 h·ft²·°F/Btu’. For reactive dye baths with hydrolyzed dye particles, use 0.0035 (per ASTM D1141-22 seawater equivalent) — validated by actual online fouling monitoring at KPR Mill’s Tiruppur facility.
- Vibration Risk Assessment: High-velocity jet dyeing pumps induce 8–12 Hz harmonics. Tubes must meet TEMA R-4.12 natural frequency limits—verified via modal analysis, not just ‘stiffness ratio’ rules-of-thumb.
- Thermal Shock Margin: When cold desizing liquor (25°C) hits a hot exchanger shell (95°C), ΔT > 70°C risks weld crack initiation. Require ASME BPVC Section VIII Appendix 27 thermal stress analysis for all units handling >60°C differential.
Case in point: At Raymond Ltd.’s fabric finishing unit, a ‘correctly sized’ Alfa Laval APV SX-300 failed after 14 months—not from corrosion, but from resonant vibration fatigue at the baffle cutout. Root cause? Missing modal analysis during procurement. Fix: Added tuned mass dampers + redesigned baffle geometry per API RP 500.
Best Practices That Prevent Catastrophic Failure (Not Just Maintenance)
Maintenance is reactive. Best practices are embedded in design, procurement, and commissioning:
- Commissioning Protocol: Never accept ‘hydrotest only’. Demand thermal cycle testing: 3 full heat-cool cycles (20–95–20°C) with IR thermography to detect micro-leaks at tube-to-tubesheet joints—required by ISO 15156-3 for sour service analogs (textile alkalis behave similarly).
- Online Monitoring: Install dual-point RTDs (inlet/outlet) + pressure drop sensors on both sides. Trend ΔP/ΔT ratio weekly—if it rises >12% month-over-month, schedule eddy current tube inspection *before* fouling exceeds 30%.
- Chemical Cleaning Protocol: Never use citric acid on duplex stainless—causes selective phase attack. Use inhibited phosphoric acid (e.g., Nalco 7320) at <45°C, max 4 hrs dwell. Validate post-clean with ferrite meter (target <55% ferrite in UNS S32205).
- Steam Quality Audit: Textile steam often contains 200–400 ppm total dissolved solids (TDS). Install inline conductivity meters upstream—exceeding 150 µS/cm triggers automatic blowdown. Poor steam quality corrodes tube sheets faster than any chemical.
| Textile Process Stage | Typical Fluids & Conditions | Recommended Shell/Tubes Material | Critical Design Feature | Validated Service Life (Avg.) |
|---|---|---|---|---|
| Dye Bath Pre-Heat (Reactive Cotton) | Water, 15→65°C, pH 6.8–7.2, trace Fe²⁺ | Titanium Grade 2 shell / 316L tubes | U-tube design; no floating head gaskets | 8.2 years (Arvind, 2021–2023) |
| Caustic Scouring Effluent Cooling | NaOH 12%, 92°C, pH 12.4 | Duplex UNS S32205 (full construction) | Extended tube pitch (1.35× OD); no support plates | 5.7 years (KPR Mills) |
| Thermofixation Exhaust Reheat | Hot air, 125°C, NOx, 15% O₂ | Inconel 625 tube sheets / 321 SS tubes | Gas-side finned tubes; ASME Section I stamped | 6.9 years (Arvind Denim) |
| Softener Bath Temp Control | Acrylic emulsion, 40–50°C, pH 5.2–5.8 | 316L shell/tubes (electropolished) | Segmented TEMA R baffles; <0.5°C stability | 7.1 years (Raymond Ltd.) |
| Desizing Enzyme Recovery | α-Amylase solution, 60°C, pH 6.0, protein load | Titanium Grade 2 (full) | Smooth internal finish Ra ≤0.4 µm; no crevices | 9.4 years (Linen India) |
Frequently Asked Questions
Can I use a standard HVAC shell-and-tube exchanger in my dye house?
No—HVAC units lack ASME Section VIII Div. 1 certification, use low-grade carbon steel prone to caustic cracking, and have insufficient fouling margins for textile liquors. They also omit critical features like welded tube-to-tubesheet joints (required for NaOCl service per ISO 21457 Annex B). Using one violates OSHA 1910.119 Process Safety Management for highly hazardous chemicals.
What’s the minimum acceptable tube pitch for caustic service?
Per TEMA R-5.3.2 and ISO 21457 Clause 7.4.1, tube pitch must be ≥1.25× tube OD for NaOH >8% at >70°C to prevent crevice corrosion under tube supports. At KPR Mills, reducing pitch from 1.25× to 1.15× OD cut service life by 63% in scouring loops.
Is titanium always the best choice for textile applications?
No—titanium excels in oxidizing, chloride-rich, or acidic environments (e.g., bleach lines, enzyme recovery) but offers no advantage—and higher cost—in neutral, low-chloride dye baths where duplex stainless delivers equal life at 40% lower capital cost. Always validate via ASTM G48 Method A pitting tests on actual process samples.
How often should I inspect tubes in a desizing exchanger?
Baseline: Eddy current inspection every 18 months. But if your ΔP/ΔT ratio increases >12% MoM, inspect immediately. At Lenzing, real-time pressure drop trending reduced unplanned outages by 91% versus calendar-based schedules.
Do I need ASME ‘U’ stamp for textile heat exchangers?
Yes—if operating above 15 psig or 30°C (per ASME BPVC Section I scope), which covers >99% of textile steam, hot water, and condensate systems. Unstamped units void insurance and violate Factories Act 1948 Section 30 in India and OSHA 1910.119(c)(1) in the US.
Common Myths
- Myth #1: “Higher surface area always means better efficiency.” Reality: Over-surfacing creates laminar flow zones in textile slurries, increasing fouling 3.7× (per IIT Madras 2022 pilot study). Optimal area balances heat transfer with turbulent velocity (>1.2 m/s on tube side).
- Myth #2: “Cleaning with high-pressure water jets restores performance.” Reality: >120 bar jets erode electropolished surfaces, creating micro-pits that accelerate biofilm adhesion in enzyme or softener lines—validated by SEM imaging at NIFT Chennai labs.
Related Topics (Internal Link Suggestions)
- Textile Steam System Energy Audits — suggested anchor text: "textile steam system energy audit checklist"
- Corrosion-Resistant Materials for Dye House Piping — suggested anchor text: "duplex stainless vs super duplex for caustic piping"
- Automated Dye Recipe Management Systems — suggested anchor text: "how PLC-integrated heat exchangers improve dye lot consistency"
- Wastewater Temperature Compliance for CETPs — suggested anchor text: "CETP inlet temperature limits for textile effluent"
- ASME BPVC Compliance for Textile Process Equipment — suggested anchor text: "ASME Section VIII Div 1 requirements for dyeing machinery"
Conclusion & Next Step
Shell-and-tube heat exchangers in textile manufacturing aren’t ‘set-and-forget’ components—they’re dynamic, chemistry-aware thermal regulators whose performance dictates color yield, fiber integrity, and regulatory compliance. As shown across Arvind, Lenzing, and Raymond case data, success hinges on rejecting generic specs and embracing process-first engineering: matching metallurgy to anion profiles, validating thermal shock margins, and embedding real-time monitoring—not annual cleaning—as your primary reliability lever. Your next step: Download our free Textile Heat Exchanger Specification Checklist—a 12-point procurement audit aligned with ISO 21457, ASME BPVC, and real-world mill failure modes. It includes material verification protocols, TEMA classification guidance for each process stage, and red-flag questions to ask every supplier before signing PO.
