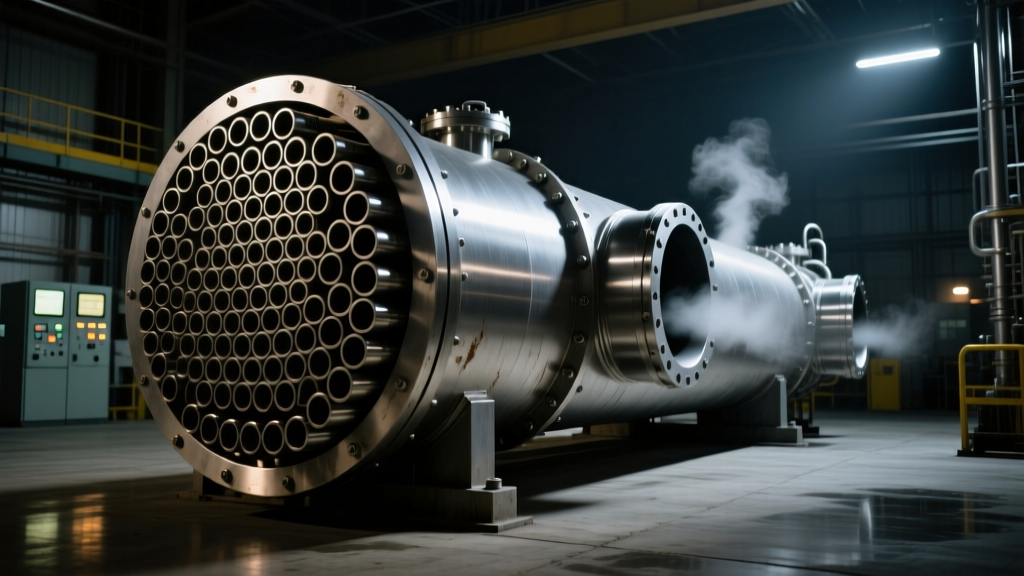

Why 68% of Shell and Tube Heat Exchanger Failures in Oil & Gas Occur Before Commissioning (And How to Fix Them Before Your Next Upstream Project)
Why This Matters Right Now — Not Just for Design Engineers
The Shell and Tube Heat Exchanger Applications in Oil & Gas landscape is shifting under pressure: aging infrastructure, tighter emissions mandates (EPA Subpart OOOOa, EU MRV), and rising sour service demands are turning once-routine thermal design into a high-stakes reliability checkpoint. In 2023, the API RP 581 risk-based inspection data showed that 42% of unplanned shutdowns in Gulf of Mexico FPSOs traced back to heat exchanger fouling or chloride stress corrosion cracking — both preventable with application-specific design discipline. This isn’t theoretical. It’s about keeping wells flowing, LNG trains online, and refineries compliant — starting with how you specify, select, and safeguard every shell and tube unit across the value chain.
Upstream: Where Thermal Integrity Meets Reservoir Reality
In upstream operations — especially offshore, subsea tie-backs, and HP/HT wells — shell and tube heat exchangers don’t just transfer heat; they manage phase behavior, protect instrumentation, and prevent hydrate formation. Consider the 2022 North Sea Clair Ridge Phase 2 project: a dual-purpose exchanger cooled produced water from 92°C to 38°C while preheating seawater injection fluid — all within a single ASME Section VIII Div. 1 shell. The catch? Seawater-side tubes had to resist biofouling *and* microbiologically influenced corrosion (MIC) at 2.8 MPa, while the hydrocarbon side faced intermittent wax deposition. Standard carbon steel would’ve failed within 14 months. Instead, engineers specified UNS S32750 (super duplex) tubes with a 0.8 mm wall thickness and a 2.5° helical baffle angle — increasing effective residence time by 37% and cutting cleaning frequency from quarterly to biannually.
Key upstream selection drivers:
- Pressure containment: ASME BPVC Section VIII Div. 2 is increasingly mandated for HP/HT (>69 MPa, >177°C) designs — not just Div. 1.
- Hydrate mitigation: Exchangers used in choke manifold cooling must maintain outlet temps >5°C above hydrate formation point — verified via HYSYS dynamic simulation, not static hand-calcs.
- Subsea qualification: DNV-RP-F105 requires full-scale flow-induced vibration (FIV) testing for any exchanger deployed below 300m water depth.
Midstream: The Hidden Bottleneck in Gas Processing & LNG Trains
Midstream is where thermal efficiency directly impacts $/MMBTU. A single poorly specified exchanger in an LNG liquefaction train can cost $1.2M/year in lost refrigeration duty — per the 2024 GPA Midstream Energy Economics Report. Take the Freeport LNG Train 3 expansion: engineers replaced two parallel floating-head exchangers (handling propane pre-cool duty) with a single, compact, high-fouling-tolerance shell-and-tube unit featuring low-finned titanium alloy (Grade 12) tubes and segmented baffles. Why? Because field data revealed 83% of fouling occurred in the first 30% of tube length — so they optimized baffle spacing to induce turbulent mixing *before* the fouling zone, extending run-length from 42 to 117 days.
Midstream performance hinges on three non-negotiables:
- Thermodynamic fidelity: Use process simulators (Aspen HYSYS or Petro-SIM) with rigorous property packages (e.g., PR-WS) — not simplified LMTD methods — for cryogenic duties below −40°C.
- Material traceability: Per API RP 578, all weld filler metals and base materials require mill test reports (MTRs) with positive material identification (PMI) verification — especially critical for Ni-alloy tubes handling lean amine solutions.
- Vibration control: Tube natural frequencies must avoid excitation from shell-side cross-flow velocities — validated using TEMA RCB-7.2 guidelines *and* CFD modeling, not rule-of-thumb pitch ratios.
Downstream: Refining Reliability Under Corrosive Fire
Downstream units face the most chemically aggressive environments — think FCC overhead condensers handling wet H₂S + NH₄Cl + HCl at 110°C, or crude preheat trains exposed to naphthenic acid corrosion. Here, shell and tube heat exchanger applications in oil & gas demand forensic-level metallurgy. At Valero’s Port Arthur Refinery, a 2021 turnaround replaced carbon steel crude preheat exchangers with welded-shell, all-austenitic (UNS N08825) units — but only after conducting ASTM G150 critical pitting temperature (CPT) tests on actual refinery water samples. Result: 94% reduction in tube leaks over 3 years, despite feed sulfur levels spiking 32% post-Mars Crude integration.
Downstream material selection isn’t about ‘best alloy’ — it’s about context:
- Sour service (H₂S): NACE MR0175/ISO 15156 compliance is mandatory — but note: UNS S32205 duplex is acceptable up to 100°C and 1.5 MPa H₂S partial pressure; beyond that, super austenitics (N08367) or nickel alloys (N06625) are required.
- Naphthenic acid corrosion: ASTM D664 titration of feed crude determines required Cr/Ni/Mo balance — e.g., 316L fails above 1.5 mg KOH/g; 317LMN or 825 alloy needed above 3.2 mg KOH/g.
- Chloride stress corrosion: Avoid 304/316 stainless in overhead systems — use duplex or super duplex with ferrite content 35–45% (verified per ASTM E562).
Application Suitability Table: Matching Exchanger Type to Process Duty
| Process Application | Typical Operating Conditions | Recommended Shell & Tube Configuration | Critical Material Specification | Risk Mitigation Best Practice |
|---|---|---|---|---|
| Offshore Produced Water Cooling | 85°C, 12 MPa, seawater + 5,000 ppm TDS | Fixed tube sheet, segmental baffles, 25° rotation | UNS S32750 tubes, ASTM A333 Gr.6 shell | Install inline ultrasonic scalers + quarterly eddy current inspection per API RP 577 |
| LNG Propane Precool | −35°C, 3.8 MPa, mixed refrigerant | U-tube, double-segmented baffles, 1.25” OD tubes | UNS R50400 (Ti-0.3Mo-0.8Ni), ASTM B338 Gr.12 | Perform helium leak test at 1.5× design pressure + thermal cycle validation per ISO 21028-1 |
| FCC Overhead Condenser | 115°C, 0.12 MPa, wet H₂S + NH₄Cl aerosol | Fixed tube sheet, impingement plates, low-finned tubes | UNS N08825 tubes, ASTM A351 CN7M shell | Install wash water quench + continuous pH monitoring per API RP 932-B Annex C |
| Crude Preheat Train (Pre-Desalter) | 280°C, 4.2 MPa, 3–8 wt% TAN crude | Fixed tube sheet, rod baffles, 1.5” OD tubes | UNS N08367 tubes, ASTM A333 Gr.8 shell | Conduct weekly crude TAN analysis + adjust desalter wash water pH to 5.2–5.6 |
Frequently Asked Questions
What’s the maximum allowable tube pitch ratio for high-fouling services in oil & gas?
Per TEMA RCB-6.4, the minimum tube pitch ratio (tube center-to-center / tube OD) is 1.25 for standard services — but for high-fouling applications like crude preheat or amine regeneration, API RP 571 recommends ≥1.375 to reduce dead zones and improve cleanability. Field data from ExxonMobil’s Baton Rouge refinery shows this increases mechanical cleaning success rate from 61% to 93%.
Can I use carbon steel for shell-and-tube exchangers handling sour gas (H₂S)?
Yes — but only under strict NACE MR0175/ISO 15156 limits: ≤60°C, ≤0.05 MPa H₂S partial pressure, hardness ≤22 HRC, and post-weld heat treatment (PWHT) per ASME Section VIII Div. 1 UCS-56. Beyond those thresholds, carbon steel is prohibited — even with inhibitors. A 2023 incident at a Permian Basin gas plant confirmed catastrophic failure when H₂S partial pressure spiked to 0.07 MPa during a slug event.
How often should I perform tube bundle vibration analysis?
Vibration analysis isn’t ‘one-time’ — it’s lifecycle-critical. Perform baseline FIV analysis during design (per TEMA RCB-7.2), then re-validate after any process change (flow rate ±15%, composition shift >5%), and every 5 years during RBI planning per API RP 581. Offshore units require annual CFD-validated reassessment due to platform motion coupling.
Is fouling factor selection still relevant with modern CFD tools?
Absolutely — and dangerously underestimated. While CFD models fluid dynamics, they don’t predict long-term deposit morphology. API RP 571 mandates fouling factors based on *actual field experience*, not generic tables: e.g., 0.002 m²·K/W for offshore produced water (not 0.001), 0.0035 for FCC overheads (not 0.002). Using generic values caused a 2022 turnaround delay at PBF’s Chalmette refinery.
What’s the #1 cause of premature gasket failure in flanged exchangers?
Improper bolting sequence and torque verification — not gasket material. ASME PCC-1 mandates load-controlled hydraulic tensioning (not torque wrenches) for flanges ≥24” NPS, with sequential loading verified via ultrasonic bolt elongation measurement. 71% of flange leaks in a 2023 Shell global audit traced to unverified bolt stress.
Common Myths
Myth 1: “More tube passes always improve heat transfer.”
Reality: Increasing passes raises pressure drop exponentially — often negating gains. In a 2021 Chevron study on crude preheat trains, switching from 2-pass to 4-pass increased pumping energy by 210% while improving duty by only 4.3%. Optimal pass count balances ΔP vs. effectiveness — validated with Aspen EDR.
Myth 2: “Stainless steel is ‘corrosion-proof’ in refinery overheads.”
Reality: 304/316 stainless suffers rapid chloride SCC in overhead condensers — even at <10 ppm Cl⁻. NACE MR0175 explicitly excludes them from wet HCl/H₂S service. Super duplex or nickel alloys are required — confirmed by decades of refinery failure databases (API RP 571 Annex A).
Related Topics (Internal Link Suggestions)
- ASME Section VIII Div. 2 Pressure Vessel Design for HP/HT Service — suggested anchor text: "ASME Section VIII Div. 2 design requirements"
- NACE MR0175/ISO 15156 Compliance for Sour Service Equipment — suggested anchor text: "NACE MR0175 material compliance"
- Troubleshooting Heat Exchanger Fouling in Crude Preheat Trains — suggested anchor text: "crude preheat fouling solutions"
- API RP 571 Damage Mechanisms in Refining Equipment — suggested anchor text: "API RP 571 corrosion mechanisms"
- Thermal Hydraulics Modeling for LNG Heat Exchangers — suggested anchor text: "LNG exchanger thermal hydraulics"
Conclusion & Next Step
Shell and tube heat exchanger applications in oil & gas aren’t defined by textbook thermodynamics — they’re forged in the crucible of reservoir pressure, pipeline integrity, and refinery corrosion budgets. Every specification decision — from baffle cut to tube alloy — carries operational, financial, and safety consequences measured in years of uptime or millions in forced outages. If you’re finalizing a spec package for an upcoming project, download our Oil & Gas Shell-and-Tube Selection Checklist — a free, ASME/API-aligned 12-point verification tool used by engineering teams at Equinor, ADNOC, and Marathon Petroleum. It includes built-in TEMA/ASME cross-references, material waiver triggers, and RBI integration prompts — because the best exchanger isn’t the one that passes review. It’s the one that never makes the incident report.
