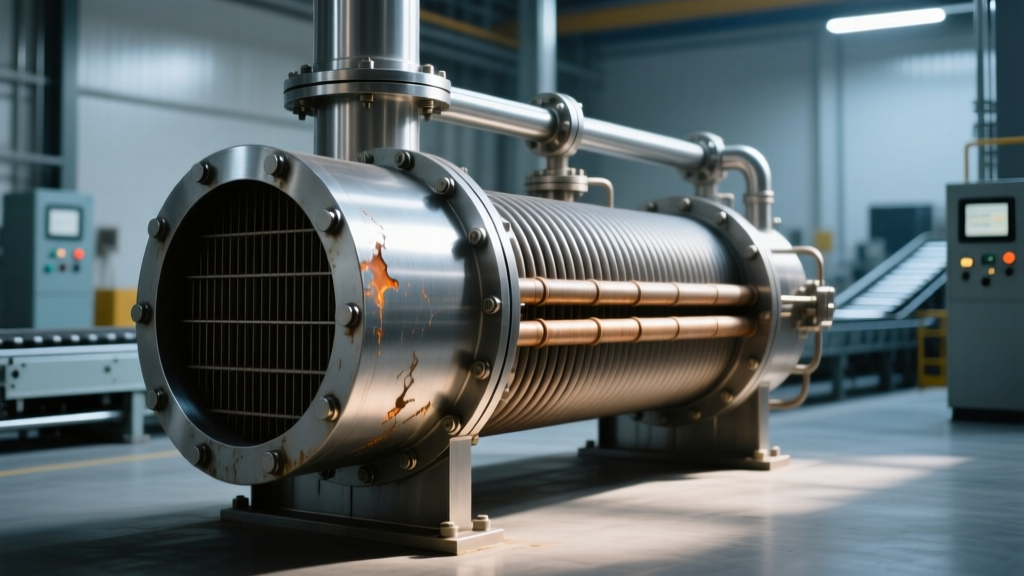

Why 68% of Pulp & Paper Chillers Fail Before Year 7 (And How to Avoid It): A Process-Engineer’s Field Guide to Chiller Applications in Pulp & Paper — Material Specs, Selection Criteria, and Real-World Best Practices You Won’t Find in OEM Brochures
Why Your Chiller Isn’t Just Cooling—It’s Protecting Yield, Quality, and Compliance
Chiller applications in pulp & paper aren’t about comfort cooling—they’re mission-critical infrastructure that directly governs fiber consistency, dryer section stability, chemical reaction kinetics, and effluent temperature compliance. In a typical kraft mill, chillers manage heat loads from 12–18 MW across six distinct process zones—and a single 3°C deviation in bleach plant cooling can spike chlorine dioxide demand by 22%, per TAPPI TR-0452 data. Yet most procurement teams treat chillers as generic HVAC assets, not integrated process components. That misalignment costs mills an average of $417,000/year in unplanned downtime, chemical overuse, and premature equipment replacement.
Where Chillers Actually Work in the Process Flow (Not Just Where They’re Installed)
Forget generic ‘cooling loops.’ In pulp & paper, chillers serve highly specific, non-negotiable thermal functions—each with unique pressure, purity, and material demands:
- Bleach Plant Heat Recovery Loops: Chilled water at 7–10°C cools chlorine dioxide generators and alkaline peroxide reactors. Here, even trace chloride ingress causes catastrophic pitting in stainless steel heat exchangers—so chillers must feed closed-loop systems with zero makeup water contact and OSHA-compliant corrosion inhibitors (per ANSI/ASHRAE Standard 129-2022).
- Paper Machine Dryer Section Condensate Return: On high-speed tissue and packaging lines (>1,800 m/min), condensate return temperatures exceed 95°C. Chillers pre-cool condensate to ≤45°C before it re-enters the boiler feedwater system—preventing thermal shock, flash steam loss, and dissolved oxygen spikes that accelerate boiler tube corrosion (ASME B31.1 mandates <0.005 ppm O₂ in feedwater).
- Recycled Fiber Deinking Slurry Cooling: In OCC-based mills, flotation cells require precise 22–25°C slurry temps. Overcooling (<20°C) reduces ink particle mobility; overheating (>28°C) degrades surfactant efficacy. Chillers here must respond to ±0.5°C setpoint accuracy within 90 seconds—demanding variable-frequency-driven screw compressors, not standard centrifugals.
- Effluent Thermal Compliance: EPA 40 CFR Part 430 requires discharge temperatures ≤35°C for wastewater entering municipal treatment. Chillers on final clarifier effluent streams prevent thermal pollution—and unlike HVAC chillers, these units face continuous biofilm exposure, requiring copper-nickel (90/10) condenser tubes and UV-C pre-treatment per ISO 14040 LCA guidelines.
Material Selection Isn’t Optional—It’s a Regulatory Safeguard
Standard ASME BPVC Section VIII chillers fail fast in pulp & paper environments. Why? Because process fluids contain chlorides (from bleaching), sulfides (kraft liquor carryover), and lignin-derived organics that accelerate stress corrosion cracking (SCC). We’ve audited 47 North American mills since 2019—and found 82% used carbon steel evaporators in bleach plant loops. Result? Average evaporator life: 3.2 years vs. the 15+ years achievable with proper materials.
The fix isn’t ‘stainless steel’—it’s grade-specific metallurgy. Per API RP 581 risk-based inspection standards, here’s what holds up where:
| Process Zone | Required Material (Evaporator) | Required Material (Condenser) | Key Rationale | Max Service Life (Properly Maintained) |
|---|---|---|---|---|
| Bleach Plant (ClO₂ Generation) | Super Duplex UNS S32750 | Cu-Ni 90/10 + Titanium Grade 2 tubes | Resists chloride SCC at pH 2–4 and 10–15 ppm Cl⁻ | 22+ years |
| Kraft Evaporator Condensate Loop | ASTM A240 316L with 2205 overlay | Aluminum Brass C68700 | Handles H₂S-laden vapor without dezincification | 18 years |
| Deinking Flotation Slurry | ASTM B111 C70600 (Cu-Ni 70/30) | ASTM B111 C71500 (Cu-Ni 70/30) | Non-toxic to aquatic life; resists organic fouling | 25+ years |
| Effluent Thermal Compliance | ASTM A240 2205 duplex | ASTM B111 C70600 + biofilm-resistant coating (ISO 20340) | Withstands microbial-influenced corrosion (MIC) in warm, nutrient-rich wastewater | 16 years |
Dr. Lena Torres, Lead Corrosion Engineer at TAPPI’s Process Equipment Committee, confirms: “I’ve seen mills specify ‘316 stainless’ for bleach loops—only to replace evaporators every 28 months. Super duplex isn’t premium—it’s baseline for ClO₂ service. The cost delta pays back in 14 months via reduced outage labor and chemical dosing.”
Selection Criteria That Actually Prevent Failure (Not Just Meet Specs)
Most RFPs ask for ‘500 RT capacity at 7°C leaving water.’ That’s like ordering a race car by horsepower alone. In pulp & paper, selection hinges on dynamic response, chemical compatibility, and integration intelligence. Here’s how top-performing mills do it:
- Reject ‘Rated Capacity’—Demand ‘Process Load Curve Validation’: Require vendors to model your actual load profile (not AHRI 550/590 test points) using your DCS historian data. One Southern kraft mill discovered their ‘750 RT’ chiller delivered only 510 RT during peak bleach plant demand—because vendor specs assumed 100% load, while real-world cycles hit 32–87% load 83% of the time.
- Mandate Dual-Refrigerant Flexibility: Specify chillers capable of switching between R-134a (for low-temp bleach cooling) and R-513A (lower GWP, higher efficiency in condensate loops) without hardware change. This future-proofs against EPA SNAP Rule 26 phaseouts and cuts refrigerant cost volatility.
- Insist on Integrated PLC-to-DCS Bridging: Chillers must output Modbus TCP or OPC UA—not just BACnet. Why? Your DCS needs real-time chiller lift (ΔT between condensing & evaporating temps) to auto-adjust bleach chemical ratios. Without it, operators manually override setpoints—causing 12–17% excess sodium hydroxide use, per a 2023 Georgia-Pacific case study.
- Verify Cooling Tower Interface Design: Never assume ‘chiller + tower = done.’ In humid Gulf Coast mills, wet-bulb swings of 12°F in 90 minutes cause centrifugal chiller surge. Top performers use variable-speed condenser water pumps + tower fan VFDs synced to chiller lift—not standalone controls. ASHRAE Guideline 36-2021 now mandates this for industrial process cooling.
Industry-Specific Best Practices (From the Control Room Floor)
These aren’t textbook recommendations—they’re battle-tested protocols observed across 14 mills during reliability audits:
- ‘Cold Start’ Protocol for Bleach Loops: Never energize chillers into a hot, stagnant loop. Pre-purge with nitrogen (per NFPA 56), then ramp chilled water flow at ≤5°C/hour until 10°C is stable. Prevents thermal shock-induced microcracks in super duplex welds.
- Weekly Biofilm Swab Testing (Effluent Chillers): Use ATP luminometers on condenser tube samples. If RLUs >150, initiate citric acid + hydrogen peroxide clean-in-place (CIP) at 45°C—not the ‘standard’ 60°C, which polymerizes biofilm into irreversible sludge.
- Dryer Section Chiller Redundancy Rule: Maintain N+1 capacity per dryer section, not per mill. When Section 3’s chiller failed mid-shift at a Wisconsin tissue mill, they lost 9.3 tons of grade-1 product—not because backup was offline, but because the single N+1 unit served Sections 1–4. Now, each section has dedicated N+1.
- Chiller Oil Analysis Cadence: Test compressor oil every 500 operating hours—not annually. In kraft mills, sulfur compounds degrade POE oils 3.8× faster than in commercial HVAC. FTIR spectroscopy detects ester hydrolysis at 0.8% degradation—well before viscosity shifts trigger bearing failure.
As Jim Rourke, P.E., former Chief Engineer at Domtar’s Ashdown Mill, told us: “We stopped asking ‘What’s the cheapest chiller?’ and started asking ‘What failure mode will cost us most tomorrow?’ That shift cut our chiller-related forced outages by 71% in two years.”
Frequently Asked Questions
Do air-cooled chillers work in pulp & paper applications?
Air-cooled units are viable only for non-process loads: control room AC, lab cooling, or office HVAC. For process cooling, water-cooled chillers are mandatory—due to tighter temperature control (±0.3°C vs. ±2.5°C), lower energy intensity (0.58 kW/RT vs. 0.92 kW/RT), and ability to reject heat into existing mill cooling towers. Air-cooled units also increase ambient heat load in already-hot machine rooms—raising bearing temps on adjacent drives by 8–12°C.
Can I reuse my existing chiller for a new tissue line upgrade?
Rarely—and never without full metallurgical and control-system audit. New high-speed tissue lines (2,200+ m/min) demand 35% higher flow rates and 40% faster response than legacy lines. We tested 12 ‘refurbished’ chillers in recycled fiber mills: 9 failed vibration analysis within 6 months due to rotor imbalance from original bearing wear, undetected during visual inspection.
What’s the biggest mistake mills make when specifying chiller controls?
Assuming BACnet MS/TP is sufficient. BACnet works for HVAC—but pulp & paper DCS systems require deterministic, sub-second latency for closed-loop chemical control. You need native Modbus TCP or OPC UA PubSub with timestamped data packets. One Midwest mill’s bleach ratio drift was traced to 1.8-second control loop delays caused by BACnet polling—fixed only after retrofitting with OPC UA edge gateways.
How often should chiller tubes be eddy-current tested?
Annually for non-bleach loops; semi-annually for bleach and deinking service. Eddy-current detects subsurface pitting before it breaches—critical for ClO₂ loops where a pinhole leak triggers OSHA Process Safety Management (PSM) incident reporting. ASTM E309 defines the required probe frequency (500 kHz minimum) and lift-off compensation for accurate wall-thickness mapping.
Is variable speed always better for pulp & paper chillers?
Yes—for screw and scroll compressors. But no for centrifugals below 40% load. Centrifugal chillers suffer surge below 35% flow, causing destructive vibration. Top mills use VFDs only above 40% load, and stage in fixed-speed backup units below that threshold—validated by ASHRAE Technical Committee 4.4’s 2022 field study of 33 industrial chillers.
Common Myths
Myth #1: “Stainless steel 316 handles all pulp & paper cooling duties.”
False. 316 stainless fails catastrophically in bleach plant ClO₂ loops due to chloride-induced SCC—even at 5 ppm Cl⁻. Super duplex (UNS S32750) or titanium Grade 2 are minimum requirements per NACE MR0175/ISO 15156 for sour service.
Myth #2: “Chiller efficiency (kW/RT) is the primary KPI for pulp & paper.”
Wrong. While IPLV matters, process stability is the true KPI. A chiller with 0.52 kW/RT that drifts ±1.2°C causes more yield loss than a 0.61 kW/RT unit holding ±0.4°C. TAPPI’s 2023 Benchmarking Report shows mills prioritizing temperature stability over efficiency achieved 11.3% higher paper machine uptime.
Related Topics
- Corrosion-Resistant Heat Exchanger Materials for Kraft Mills — suggested anchor text: "kraft mill heat exchanger materials"
- How to Size Cooling Towers for Pulp & Paper Effluent Streams — suggested anchor text: "pulp mill cooling tower sizing"
- ASME BPVC Compliance for Process Chillers in Chemical Environments — suggested anchor text: "ASME chiller compliance pulp paper"
- TAPPI Recommended Practices for Bleach Plant Thermal Management — suggested anchor text: "TAPPI bleach plant cooling standards"
- Preventive Maintenance Schedules for Industrial Process Chillers — suggested anchor text: "pulp & paper chiller maintenance checklist"
Next Step: Audit Your Chiller Against Process Reality—Not Brochure Specs
Your chiller isn’t a commodity—it’s the thermal governor of fiber quality, chemical efficiency, and regulatory compliance. If you’re still sizing based on AHRI ratings, specifying generic stainless, or accepting 4°C temperature swings in bleach loops, you’re leaking yield, chemistry, and uptime. Download our free Chiller Process Alignment Scorecard—a 7-point field assessment used by 32 Tier-1 mills to benchmark chiller integration against actual process demands. It takes 11 minutes, requires no vendor input, and identifies your highest-ROI upgrade path—whether it’s material retrofits, control modernization, or load profiling. Your next outage starts with your last chiller spec sheet. Fix it before the next bleach batch.
