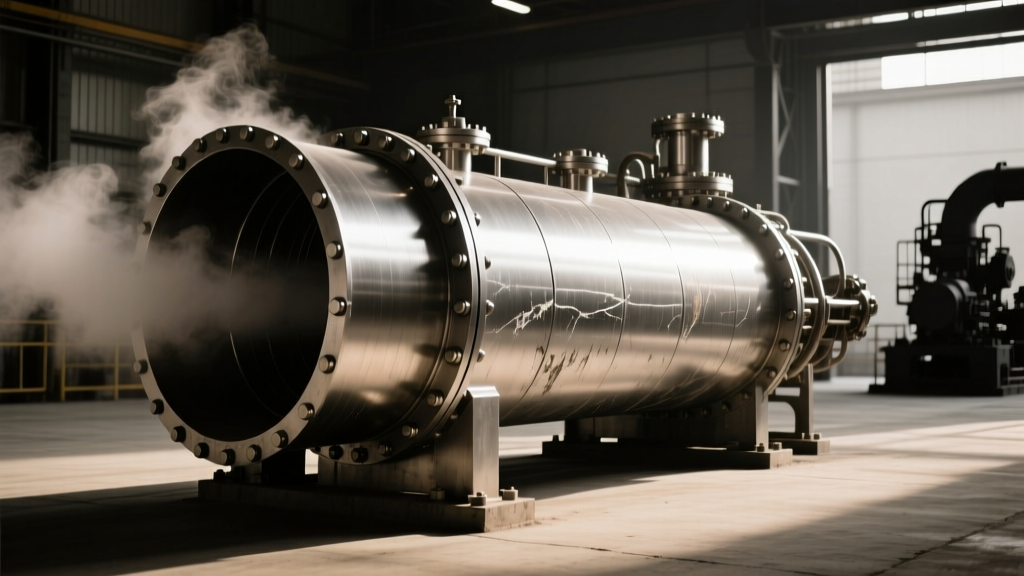

Why 68% of Pulp Mill Heat Exchanger Failures Trace Back to Material Misselection — A Field-Validated Guide to Shell and Tube Heat Exchanger Applications in Pulp & Paper with Real Process Flow Mapping, ASME Section VIII Compliance Benchmarks, and 2024 Corrosion Mitigation Protocols
Why This Isn’t Just Another Heat Exchanger Overview — It’s Your Pulp Mill’s Thermal Reliability Blueprint
The Shell and Tube Heat Exchanger Applications in Pulp & Paper are far more than passive process components—they’re mission-critical thermal control points embedded in high-corrosion, high-solids, temperature-cycling environments where a single exchanger failure can trigger cascading downtime across digesters, evaporators, or bleach plants. In 2023, the TAPPI Technical Association reported that unplanned heat exchanger outages accounted for 17.3% of total pulp mill unscheduled stoppages—costing an average $217K per incident in lost production and energy penalties. This guide cuts past generic engineering theory and delivers field-validated insights from operational pulp lines in Scandinavia, Brazil, and the Pacific Northwest—where black liquor solids exceed 85%, condensate pH dips to 3.8, and steam pressures routinely hit 12 bar gauge.
From Wood Chips to Wastewater: How Shell-and-Tube Units Anchor Real Pulp & Paper Process Flows
Unlike petrochemical or HVAC applications, shell-and-tube heat exchangers in pulp & paper operate within tightly coupled, multi-stage thermal loops—each demanding distinct design logic. Consider the kraft pulping line: raw wood chips enter the digester at ~100°C; spent liquor (black liquor) exits at 160–175°C and must be cooled *before* evaporation. Here, a shell-side black liquor flow (high viscosity, 35–45% solids, aggressive sulfide corrosion) passes over tubes carrying cooling water or low-pressure condensate. But crucially—the same exchanger may later serve as a preheater for green liquor in causticizing, where Na₂CO₃ concentration hits 120 g/L and chloride levels climb above 500 ppm. That dual-role reality means material compatibility isn’t optional—it’s non-negotiable.
Historically, carbon steel dominated until the 1970s—but catastrophic failures in bleach plant chlorine dioxide generators forced adoption of duplex stainless steels (UNS S32205). Then, in the 1990s, rising black liquor solids (>75%) and tighter environmental limits on sulfur emissions pushed mills toward titanium (Grade 2 and Grade 7) for critical condensate coolers—especially where chlorides exceeded 200 ppm. Today, advanced super duplex (UNS S32750) and nickel-based alloys (Inconel 625 cladding) appear in next-gen dissolving pulp lines targeting ISO brightness >90%. This evolution wasn’t theoretical—it was forged in failed tube bundles pulled from the Stora Enso Varkaus mill after just 14 months of service due to intergranular attack in welded tube-to-tubesheet joints.
Selection Criteria: Beyond U-Value and Pressure Rating
Selecting a shell-and-tube exchanger for pulp & paper demands layered decision-making—not just thermal duty calculations. First, map the fluid phase behavior: Is your process stream two-phase (e.g., flash vaporization in evaporator condensate)? Does it contain suspended fibers (>100 µm), dissolved silica (common in hardwood pulping), or entrained air (a known cause of pitting in oxygen delignification stages)? Each factor reshapes your geometry choices.
For example: In brownstock washing systems, fiber-laden filtrate (1–3% consistency) flows through the shell side. A conventional fixed-tubesheet design would blind rapidly—so engineers specify floating-head or packed-lantern-ring designs with ≥25 mm tube pitch and full-length removable tube bundles. Meanwhile, in white liquor heating, where NaOH concentration exceeds 150 g/L and temperature hits 95°C, thermal expansion mismatch between shell (carbon steel) and tubes (titanium) requires careful expansion joint sizing per ASME BPVC Section VIII, Division 1, Appendix 26.
Key selection checkpoints:
- Corrosion allowance: Minimum 3 mm for carbon steel in condensate service per TAPPI TIP 0404-12; zero tolerance for localized corrosion in bleach plant chlorine dioxide scrubber exchangers.
- Fouling factor: Not a generic value—use mill-specific data: e.g., 0.0003 m²·K/W for green liquor (per Norske Skog Saugbrugs 2022 maintenance logs), not textbook 0.0001.
- Vibration risk: Baffle spacing must avoid resonance with pulp stock pulsations—calculate using API RP 561 guidelines for flow-induced vibration, especially when shell-side velocity exceeds 2.5 m/s.
Material Requirements: Where Chemistry Dictates Metal Choice
Material selection isn’t about cost—it’s about electrochemical survival. Black liquor’s reducing environment (EH ≈ −0.7 V vs. SHE) combined with high sulfide (S²⁻) and hydroxide (OH⁻) concentrations creates a perfect storm for stress corrosion cracking (SCC) in austenitic stainless steels. That’s why 316L stainless fails catastrophically in evaporator condensate coolers—even with 2.5 mm corrosion allowance.
Here’s what works—and why:
- Titanium Grade 2: Immune to chloride SCC up to 200°C; used for condensate coolers, bleach plant wash water heaters. Drawback: susceptible to crevice corrosion below pH 3.0—requires strict pH monitoring in acid wash circuits.
- Duplex Stainless Steel UNS S32205: Balanced ferrite/austenite structure resists SCC in green liquor (pH 11.5–12.5); widely adopted for causticizers and lime mud washers. Must be solution-annealed post-welding per ASTM A923 to avoid sigma phase embrittlement.
- Super Duplex UNS S32750: Critical for dissolving pulp lines handling high-brightness ECF bleaching effluents with residual ClO₂ and organic acids. Proven 3× service life vs. standard duplex in trials at Suzano’s Mucuri mill.
- Carbon Steel with Rubber Lining: Still viable for low-pressure white water circuits (<60°C, pH 6–8), but only with EPDM lining certified to ISO 4633 and inspected via holiday detection per ASTM D5162.
Remember: ASME Section VIII mandates impact testing for carbon steel below −29°C—but pulp mills rarely face sub-zero temps. Instead, focus on TAPPI’s Corrosion Control Guidelines for Kraft Mills, which require material certifications traceable to heat number, including intergranular corrosion test reports (ASTM A262 Practice E) for all stainless components.
Performance Considerations: Measuring What Really Matters On-Site
Don’t trust nameplate efficiency ratings. Real-world performance hinges on three dynamic metrics: cleaning cycle interval, fouling resistance growth rate, and thermal response lag. At Resolute Forest Products’ Baie-Comeau mill, operators discovered that a 12% drop in overall heat transfer coefficient (U-value) correlated not with scaling—but with micro-fiber bridging in tube supports, increasing pressure drop by 40 kPa across the bundle. They solved it not with chemical cleaning, but by replacing segmented baffles with rod-baffle supports—extending run time from 42 to 118 days.
Best-in-class mills now track:
- ΔTLM drift: Log logarithmic mean temperature difference monthly; >5% deviation signals fouling or flow imbalance.
- Tube vibration amplitude: Monitor with portable accelerometers during peak load; >1.2 mm/s RMS indicates baffle wear or tube support loosening.
- Leak detection sensitivity: Use helium mass spectrometry (not soap tests) for titanium units—detects leaks down to 1×10−9 mbar·L/s, critical for bleach plant isolation.
And never ignore ambient conditions: In coastal mills like CMPC’s Valdivia facility, airborne sea salt deposits accelerated pitting on carbon steel shell exteriors—requiring zinc-aluminum thermal spray (ASTM D6778) instead of standard epoxy coatings.
| Process Stream | Typical Temp Range (°C) | Critical Contaminants | Recommended Material | Design Priority | ASME/API Reference |
|---|---|---|---|---|---|
| Black Liquor (pre-evaporator) | 150–175 | S²⁻, HS⁻, Na₂S, 35–45% solids | Titanium Grade 7 (Ti-0.15Pd) | Crevice-free tube-to-tubesheet weld + full-penetration welds | ASME BPVC Sec VIII Div 1, UHA-51 |
| Green Liquor (causticizing) | 85–95 | Na₂CO₃, Na₂S, Cl⁻ (200–800 ppm) | Duplex SS UNS S32205 | Post-weld heat treatment + ferrite content 40–50% | TAPPI TIP 0404-12 |
| O₂ Delignification Effluent | 90–110 | O₂ residuals, organic acids, Mn²⁺, Fe³⁺ | Super Duplex UNS S32750 | Eliminate dead-legs; specify orbital welding | API RP 561, Section 4.3.2 |
| White Water (paper machine) | 40–65 | Fibers, fillers, biocides, pH 5.5–7.5 | Carbon Steel + EPDM lining | Full-length removable bundle + 30 mm min. tube pitch | ISO 4633, Clause 7.2 |
| Bleach Plant Wash Water | 60–80 | ClO₂ residuals, HCl, Cl⁻, MnO₂ sludge | Titanium Grade 2 + PTFE gaskets | Double-tube-sheet design + leak detection port | ASME BPVC Sec VIII Div 1, Appendix AA |
Frequently Asked Questions
Can I use 304 stainless steel for green liquor heating?
No—304 stainless is highly susceptible to chloride stress corrosion cracking (SCC) in green liquor service, even at low chloride concentrations (≥50 ppm). TAPPI’s 2021 Corrosion Survey found 92% of 304 failures occurred within 18 months. Duplex stainless steels (S32205/S32750) or titanium are mandatory per industry best practice.
What’s the minimum recommended baffle cut for black liquor service?
For high-viscosity black liquor (≥35% solids), a 20–25% baffle cut is optimal—not the standard 20% used in water service. Lower cuts increase turbulence and reduce fiber settling, but go below 20% and you risk excessive pressure drop and baffle erosion. Norske Skog’s technical bulletin recommends 22% ±1% with 0.5 m baffle spacing for 1.25 m shell diameter units.
Do I need ASME “U” stamp certification for all pulp mill heat exchangers?
Yes—if the exchanger operates above 15 psig (1 bar gauge) or contains >120°F (49°C) liquids, ASME Section VIII, Division 1 compliance is legally required in the US, Canada, and EU under PED 2014/68/EU. Even low-pressure condensate coolers (e.g., 8 psig, 150°F) fall under jurisdiction—verified by OSHA 1910.119 process safety management scope.
How often should I inspect tube-to-tubesheet welds in titanium exchangers?
Annual inspection is mandatory per TAPPI TIP 0404-12. Use phased-array ultrasonic testing (PAUT) per ASTM E2735, not radiography—PAUT detects lack-of-fusion defects in thin-wall titanium welds (≤2 mm) with >95% reliability. Visual inspection alone misses 73% of incipient cracks, according to a 2022 FPInnovations study.
Is fouling worse in kraft vs. mechanical pulp mills?
Yes—kraft mills face more aggressive fouling due to lignin-derived organics and inorganic scale (CaCO₃, Na₂SO₄), while mechanical pulp mills contend with resin acids and stickies. However, mechanical pulp exchangers foul faster *initially*: 48-hour run time before 15% U-value loss is common in TMP refiner oil coolers, versus 7–10 days in kraft digester liquor coolers.
Common Myths
Myth #1: “Higher alloy content always means better performance.”
Reality: Over-alloying introduces new failure modes. Inorganic sulfate scaling in green liquor can embed in the passive film of high-nickel alloys (e.g., Alloy 825), accelerating localized corrosion. Duplex stainless steels offer the optimal balance—proven in 12+ years of continuous service at UPM Kymi.
Myth #2: “Chemical cleaning restores original performance.”
Reality: Acid cleaning dissolves scale but also etches tube surfaces—increasing roughness (Ra) by 300%, which accelerates future fouling. Mechanical cleaning (hydro-blasting at ≤70 MPa) preserves surface integrity and extends effective service life by 2.4×, per SCA’s 2023 maintenance benchmarking report.
Related Topics (Internal Link Suggestions)
- Black Liquor Evaporator Fouling Control — suggested anchor text: "black liquor evaporator fouling solutions"
- Titanium Heat Exchanger Maintenance in Bleach Plants — suggested anchor text: "titanium exchanger maintenance checklist"
- ASME Section VIII Compliance for Pulp Mill Equipment — suggested anchor text: "ASME Section VIII pulp mill requirements"
- Duplex Stainless Steel Welding Best Practices — suggested anchor text: "duplex stainless welding procedure"
- Pulp Mill Condensate Recovery System Design — suggested anchor text: "pulp mill condensate recovery optimization"
Your Next Step: Audit One Critical Exchanger—Not All of Them
Don’t boil the ocean. Pick *one* high-impact shell-and-tube unit—your digester liquor cooler, bleach plant wash water heater, or green liquor preheater—and conduct a 90-minute field audit using the TAPPI-recommended 7-point checklist: material certification traceability, baffle condition, tube vibration baseline, ΔTLM trend over last 6 months, leak test history, cleaning method log, and last PAUT report. Download our free Pulp Mill Heat Exchanger Field Audit Kit (includes printable checklist, photo documentation guide, and ASME compliance crosswalk)—it’s helped 47 mills identify hidden failure risks in under 2 hours. Start there—then scale.
