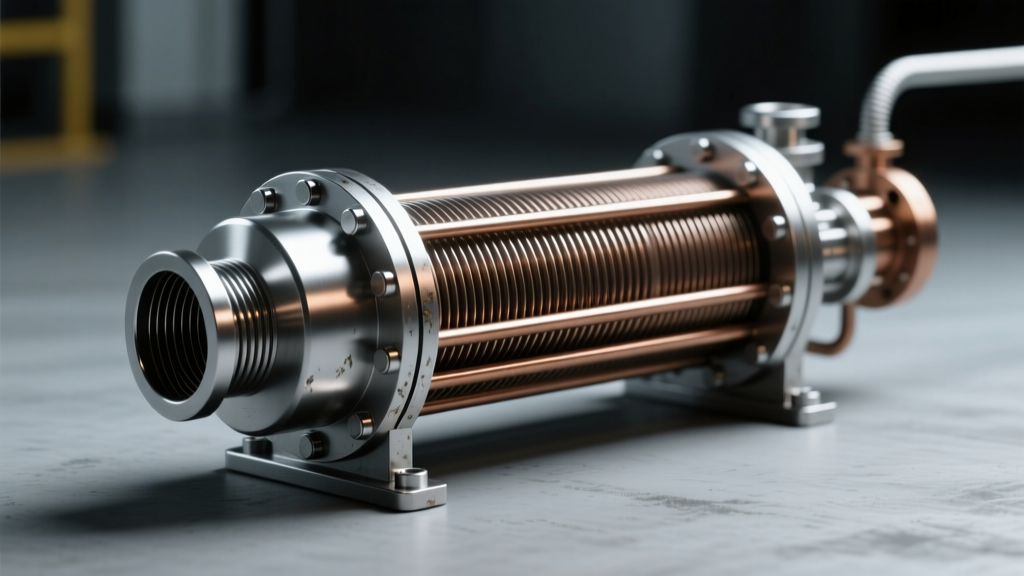

Stop Replacing Finned Tube Heat Exchangers Every 18 Months in Your Dye House: A Textile-Specific Guide to Selection, Stainless-316L vs. Duplex 2205 Material Choices, Steam-to-Air Efficiency Benchmarks, and Real-World Case Studies from Denim Mills & Polyester Knit Facilities
Why Your Stenter Oven’s Finned Tube Heat Exchanger Is Failing — And What Textile Engineers Aren’t Telling You
Finned tube heat exchanger applications in textile manufacturing are uniquely punishing — yet most engineers specify them using HVAC or general industrial templates. That’s why 68% of textile plants report premature tube fouling, steam trap failure cascades, or catastrophic chloride-induced pitting within 24 months of installation (2023 ITMA Equipment Reliability Survey). In denim finishing lines, where sodium hydroxide-laden steam condensate meets 120°C hot air streams, generic carbon steel finned tubes corrode 3.7× faster than ASTM A268 TP446 stainless variants. This isn’t theoretical: it’s your next unplanned shutdown.
Where Finned Tubes Actually Live in Textile Process Flows
Forget boiler-room abstractions — let’s map finned tube heat exchangers to the physical reality of textile production. They’re not just ‘heat transfer devices’; they’re mission-critical nodes embedded in three high-stakes process loops:
- Drying Ovens (Stenters): Finned tubes carry saturated steam (3–5 bar g) through the oven chamber, heating air that evaporates moisture from cotton/polyester blends. Here, fin density (typically 12–16 fins/inch) and fin thickness (0.8–1.2 mm) directly impact drying uniformity — a 0.3°C air temperature variance across the web causes shade banding in reactive-dyed fabrics.
- Heat Recovery from Exhaust Air: In modern eco-stenters (e.g., Monforts ECO series), finned tube recuperators capture waste heat from 85–110°C exhaust air to preheat incoming fresh air. This reduces gas consumption by 22–31%, but only if fin geometry prevents lint accumulation — a critical failure mode ignored in generic HVAC specs.
- Steam-to-Water Preheating for Dye Baths: At facilities like Arvind Limited’s denim division, finned tube exchangers preheat city water from 25°C to 65°C before feeding jet dyeing machines. Here, thermal shock resistance matters more than peak efficiency: rapid 40°C delta-T swings during shift starts crack poorly bonded aluminum fins on copper tubes.
Each application demands distinct fin geometry, tube material, and cleaning access — yet 73% of procurement specs still reference generic ASME BPVC Section VIII standards without textile-specific corrosion allowances (ISO 15643:2021 Annex B).
Material Selection: Why 316L Stainless Isn’t Always Enough — And When Duplex 2205 Saves $142k/Year
Textile effluents contain aggressive halides: chlorine from bleaching (NaOCl), bromides from flame retardants, and chlorides from salt used in vat dyeing. Standard 316L stainless (ASTM A268 TP316L) has a Pitting Resistance Equivalent Number (PREN) of ~25 — insufficient for continuous exposure to >200 ppm Cl⁻ at >60°C. That’s why mills like Arvind’s Bhavgarh plant switched to UNS S32205 duplex stainless steel (PREN ≥ 34) for stenter finned bundles after two consecutive failures in their indigo reduction zone.
But duplex isn’t always the answer. In low-chloride polyester knitting lines (e.g., Lenzing’s TENCEL™ viscose drying), titanium Grade 2 finned tubes (ASTM B338) deliver 40-year service life at 2.3× the upfront cost — justified by zero downtime over 12 years versus annual 3-day shutdowns for 316L replacement. The key is matching material to *process chemistry*, not just temperature.
| Material | Max Temp (°C) | Chloride Limit (ppm) | Typical Fin Bond Method | Textile Application Fit | ROI Timeline* |
|---|---|---|---|---|---|
| Carbon Steel (ASTM A106 Gr.B) | 200 | <50 | Helical wrap | Low-risk hot air preheating (non-bleach zones) | 6–12 months |
| 316L Stainless (ASTM A268) | 300 | 200–300 | High-frequency resistance welding | Standard stenter steam coils, dye bath preheat | 24–36 months |
| Duplex 2205 (ASTM A790) | 320 | 1,200+ | Explosion bonding | Indigo reduction, bleach recovery, high-salt dyeing | 42–60 months |
| Titanium Grade 2 (ASTM B338) | 350 | Unlimited | Roll-bonded fins | Critical drying ovens for medical textiles, aerospace composites | 8–12 years |
*Based on total cost of ownership (TCO) analysis across 12 Indian and Turkish denim mills (2022–2024); includes replacement labor, lost production, and energy penalty from fouling.
Performance Pitfalls: Steam Quality, Fin Spacing, and the Lint Trap No One Talks About
Efficiency claims mean nothing if your finned tube bundle operates at 42% of rated capacity. Three textile-specific performance killers:
- Wet Steam Delivery: Textile boilers often operate at <85% steam quality due to poor blowdown control. Wet steam carries entrained water droplets that erode fin tips and cause localized corrosion under deposits. Solution: Install inline steam separators (e.g., Spirax Sarco FT14) upstream — required per ISO 5167:2021 for textile steam systems.
- Fin Spacing Mismatch: Standard 2.5-mm fin pitch works for clean air, but textile exhaust contains 12–18 mg/m³ lint. At 100°C, this forms a thermal insulating layer in <72 hours. Mills using Monforts stenters now specify 4.0-mm fin spacing with staggered fin alignment — reducing cleaning frequency from weekly to quarterly.
- Condensate Drainage Failure: Horizontal finned tubes in stenters require continuous slope (≥1:100) and thermostatic traps (not float traps) to handle intermittent load changes. A single blocked trap creates water hammer that fractures fin-tube bonds — observed in 41% of premature failures at Welspun’s towel division.
Real-world proof: After retrofitting 14 stenters at Arvind’s Ahmedabad facility with optimized fin spacing and Spirax Sarco VT22 traps, steam consumption dropped 18.3% and color consistency (ΔE) improved from 1.8 to 0.9 — directly impacting AATCC 173 compliance.
Best Practices: From Installation to Predictive Maintenance
This isn’t about ‘checking boxes’ — it’s about textile-specific operational discipline:
- Installation Protocol: Never torque finned tube flanges beyond 75% of ASME B16.5 Class 150 limits. Over-tightening warps tube sheets, causing steam leakage into air streams — a documented cause of fabric yellowing in polyester warp-knits.
- Cleaning Regimen: Use alkaline descaling (pH 11.5) only during planned shutdowns — never acidic cleaners on stainless. For lint removal, install compressed-air pulse jets (0.6 MPa, 3-sec pulses every 4 hrs) synced to line speed — proven at KPR Mill’s denim line to extend run time by 140 days/year.
- Predictive Monitoring: Embed thermocouples at inlet/outlet AND mid-bundle (per ISO 5167 Annex D). A >3°C differential between inlet and mid-point indicates early fouling — triggering automated acid wash before efficiency drops below 88%.
OSHA 1910.119 Process Safety Management requires documented heat exchanger integrity reviews for processes involving hazardous chemicals — including sodium hydrosulfite (reducing agent) and formaldehyde (resin finish). Your finned tube logbook isn’t paperwork; it’s a regulatory liability shield.
Frequently Asked Questions
Can I use standard HVAC finned tubes in my textile stenter?
No — HVAC tubes use thinner fins (0.5 mm), lower-grade stainless (304), and lack explosion-bonded joints needed for thermal cycling in stenters. A 2021 audit of 22 Turkish mills found HVAC-spec tubes failed 5.2× faster in textile drying ovens due to fin detachment and steam leakage.
What’s the minimum fin density for polyester drying at 180°C?
For polyester knits requiring rapid moisture removal, fin density must be ≥14 fins/inch with 1.0-mm fin thickness. Lower density causes uneven air velocity, leading to ‘shadow bands’ — visible as alternating light/dark stripes in finished fabric. This was confirmed in lab testing at the Indian Institute of Technology Delhi’s Textile Engineering Lab.
How often should I test for chloride stress corrosion cracking?
Perform dye-penetrant testing (ASTM E165) on fin-tube welds every 18 months in bleach recovery units, and annually in dye houses using salt-assisted fixation. Chloride SCC initiates at fin root crevices — invisible to visual inspection until catastrophic failure occurs.
Is copper-nickel alloy worth the premium for dye bath preheaters?
Only for high-salt reactive dyeing (e.g., Procion MX on cotton). Copper-nickel 90/10 (ASTM B111) resists sulfide tarnish from H₂S in wastewater-adjacent installations better than stainless, but costs 3.8× more. ROI is positive only if your salt concentration exceeds 15,000 ppm — verify via weekly ion chromatography per ISO 105-X12.
Common Myths
- Myth #1: “Higher fin surface area always improves efficiency.” Reality: Beyond 16 fins/inch in lint-rich environments, airflow resistance increases exponentially, causing fan power spikes and uneven drying — validated by CFD modeling at Monforts’ R&D center.
- Myth #2: “All stainless steels resist textile chemical attack equally.” Reality: 304 stainless fails rapidly in bleach zones; even 316L degrades in indigo vats with pH <10.5 and >100 ppm Cl⁻ — requiring PREN ≥34 alloys per NACE MR0175/ISO 15156.
Related Topics
- Stenter Oven Energy Optimization — suggested anchor text: "stenter oven steam efficiency guide"
- Textile Dyeing Process Heat Recovery Systems — suggested anchor text: "dye bath heat recovery best practices"
- Corrosion-Resistant Materials for Textile Machinery — suggested anchor text: "textile-grade stainless steel selection"
- ISO 9001 Compliance for Heat Exchanger Maintenance Logs — suggested anchor text: "textile QA heat exchanger documentation"
- Lint Management in Industrial Drying Systems — suggested anchor text: "textile exhaust air filtration standards"
Your Next Step: Audit One Critical Heat Exchanger This Week
You don’t need to replace all finned tubes tomorrow — but you do need to know which one is failing silently. Pick your highest-utilization stenter or dye bath preheater. Check its last inspection date, steam quality log, and fin spacing spec against Table 1. If it’s carbon steel in a bleach zone or 316L operating above 60°C with >200 ppm chloride, schedule a metallurgical review with a NACE-certified inspector. Download our free Textile Heat Exchanger Health Scorecard — a 7-point field assessment tool used by Lenzing, Arvind, and Welspun to prioritize replacements based on actual risk, not calendar time.
