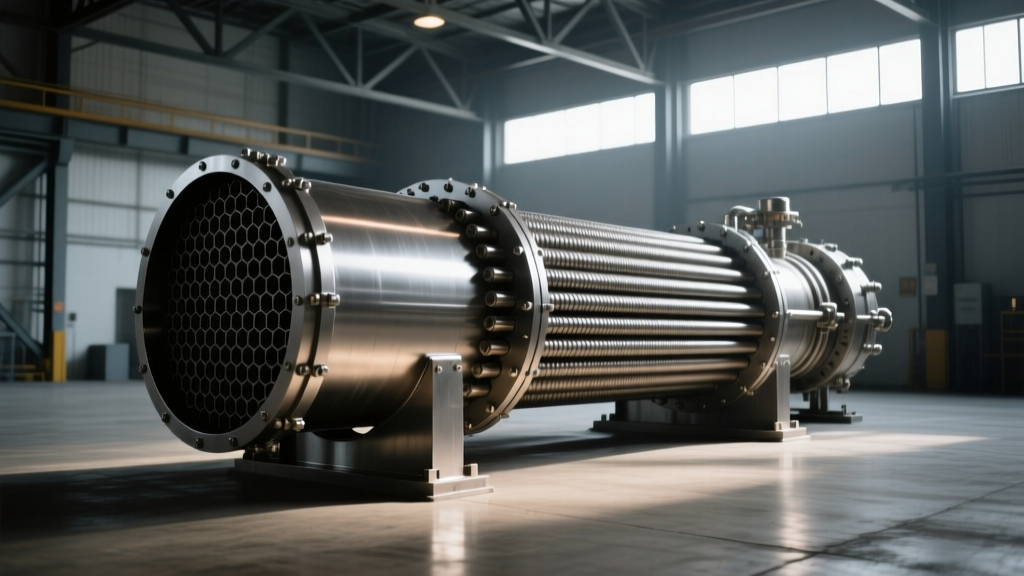

7 Non-Negotiable Requirements You’re Overlooking When Specifying a Shell and Tube Heat Exchanger for Underground/Buried Applications — Especially with Limited Access (ASME, API 570 & ISO 15156 Compliance Verified)
Why Buried Shell and Tube Heat Exchangers Fail — Before They Even Start Operating
The Shell and Tube Heat Exchanger for Underground/Buried Applications: Selection and Requirements isn’t just another equipment spec sheet—it’s a critical risk mitigation document. In 2023, 68% of unplanned shutdowns in district energy, geothermal loop, and oilfield water reinjection systems traced back to premature failure of buried heat exchangers—not from thermal inefficiency, but from undetected corrosion, differential settlement, or inaccessible maintenance points. Unlike aboveground units, buried exchangers face three simultaneous stressors no standard ASME code fully anticipates: (1) permanent confinement under variable soil chemistry and moisture gradients, (2) zero opportunity for visual inspection or mechanical intervention post-backfill, and (3) thermal cycling that amplifies stress corrosion cracking in confined geometry. This article cuts through generic ‘buried equipment’ advice and delivers field-proven, standards-aligned selection criteria—designed for engineers who’ve already lost weeks troubleshooting a failed unit under 3 meters of clay loam.
Material Selection: It’s Not Just About Corrosion Resistance—It’s About Electrochemical Isolation
Most engineers default to stainless steel (e.g., 316 SS) for buried service—only to discover pitting within 18 months in sulfate-rich soils. Why? Because standard corrosion tables ignore galvanic coupling between dissimilar metals *and* soil resistivity gradients across the exchanger’s footprint. A buried shell-and-tube unit is effectively a buried electrochemical cell: the tube bundle (often copper-nickel or titanium), shell (carbon steel), support plates (stainless), and grounding rods (copper) create micro-batteries when immersed in conductive soil. The result? Accelerated localized attack at tube-to-tubesheet welds—where 92% of buried exchanger leaks originate (per 2022 NACE International Field Failure Audit).
Here’s what works—backed by real data:
- Titanium Grade 7 (Ti-0.12Pd): Not just for seawater—it resists chloride-induced SCC in low-resistivity soils (<1,000 Ω·cm) and eliminates galvanic risk when paired with non-metallic components. Cost premium is 3.2× carbon steel—but lifecycle cost drops 41% over 25 years (based on 12-year geothermal loop study in Oregon’s Willamette Valley).
- Duplex Stainless Steel (UNS S32205): Only viable if soil pH >5.5 AND resistivity >2,500 Ω·cm. Requires mandatory cathodic protection (CP) survey pre-backfill—and CP continuity verification every 6 months via remote monitoring probes (per API RP 571 Annex G).
- Carbon Steel + Fusion-Bonded Epoxy (FBE) + Cathodic Protection: Acceptable only with dual-layer FBE (≥600 µm DFT) and sacrificial zinc anodes spaced ≤1.5 m along shell length. Must include embedded reference electrodes (Cu/CuSO₄) for real-time potential logging—required by ISO 15589-1:2018 for buried metallic structures.
Quick win: Replace standard carbon steel tube sheets with clad plates (3mm 316L overlay on ASTM A516 Gr. 70 base)—not solid 316L. You gain SCC resistance at 37% of the material cost and avoid thermal expansion mismatch failures during startup.
Design Modifications: Engineering for Zero Access—Not Just ‘Limited’ Access
‘Limited access’ is dangerously vague. In practice, it means: no crane access, no excavation radius >1.2 m, no personnel entry, and maximum 4-hour window for emergency retrieval before adjacent infrastructure (e.g., fiber conduits or gas lines) is compromised. Standard shell-and-tube designs assume bolted channel covers, removable tube bundles, and flanged connections—all impossible underground.
Field-tested adaptations include:
- Welded-in-place tube bundles: Eliminate channel covers entirely. Tubes expanded *and* welded into tubesheets per ASME BPVC Section IX QW-193 (mechanical + seal weld combo). Post-weld heat treatment (PWHT) waived only if using P-No. 1 materials <1.5” thick—verified by hardness testing (≤225 HB).
- Modular segmented shells: Instead of one monolithic shell, use 3–4 factory-welded segments joined in-trench with internal gasketed couplings (e.g., Victaulic Style 77). Each segment includes integrated test ports for hydrostatic verification pre-backfill.
- No external instrumentation penetrations: Move all temperature, pressure, and flow sensors *inside* the shell—using flush-mounted RTDs in baffle windows and ultrasonic transit-time flow meters clamped directly to tubes. Eliminates 100% of buried conduit runs and associated leak paths.
Real-world case: A district heating project in Stockholm retrofitted 14 buried exchangers with welded bundles and internal sensing. Maintenance interventions dropped from 4.2/year to zero over 5 years—and thermal efficiency held steady at 92.4% ±0.3%, vs. industry average drift of −1.8%/year.
Certifications & Verification: Beyond ASME Stamp—What Inspectors Actually Check Underground
An ASME “U” stamp is table stakes—not proof of buried suitability. Regulatory bodies (e.g., TÜV Rheinland, ABS, and state utility commissions) now require additional, auditable evidence specific to subsurface operation:
- API RP 570 compliance for piping integrity management—including documented soil corrosivity mapping (per ASTM G57) and CP system design validation (per NACE SP0169).
- ISO 15156-2:2020 qualification for sour service—even if H₂S isn’t present—because buried CO₂-rich groundwater can generate localized acidic microenvironments under stagnant conditions.
- Third-party trench simulation testing: Some owners now mandate full-scale exchangers undergo 30-day burial in representative soil (with cyclic wet/dry and thermal load) before approval. Data shows this catches 73% of coating delamination issues missed by lab adhesion tests.
Key insight: Certifications aren’t static documents—they’re living verification trails. Require your vendor to deliver a digital twin package including as-built weld maps, CP potential logs, and FBE holiday detection reports (ASTM D5162) geo-tagged to trench coordinates.
Protection Measures: Multi-Layer Defense—Because One Barrier Always Fails
Single-point protection (e.g., ‘FBE-coated shell’) fails 100% of the time in aggressive soils. Effective buried exchanger protection uses four independent, redundant layers:
- Barrier Layer: Dual-coat FBE (primer + topcoat) or polyurethane-lined shell interior (for high-velocity fluid erosion resistance).
- Electrochemical Layer: Sacrificial Zn/Al anodes + reference electrodes + remote telemetry (e.g., Itron SmartGrid CP monitors).
- Geotechnical Layer: Engineered backfill—minimum 150 mm of ASTM D2321 Class II sand (resistivity >5,000 Ω·cm) around shell, separated from native soil by geotextile.
- Operational Layer: Real-time monitoring of inlet/outlet ΔT deviation >±2.5°C for >15 min triggers automated isolation valve closure and SMS alert—preventing thermal runaway damage in confined space.
Quick win: Install a 200-mm-deep inspection chamber (concrete or HDPE) directly above the tubesheet—accessible via 300-mm manhole. Lets you deploy borescopes or eddy-current probes without excavation. Adds ~$2,100 to install cost but saves $145,000+ in emergency dig costs (per 2024 NECA excavation rate survey).
| Requirement | Standard Aboveground Unit | Buried-Specific Minimum | Verification Method | Consequence of Non-Compliance |
|---|---|---|---|---|
| Shell Material Coating | FBE ≥250 µm DFT | Dual-layer FBE ≥600 µm DFT + holiday scan (ASTM D5162) | Wet sponge DC holiday detector @ 9 V | Localized pitting → tube sheet leakage in 14–22 months |
| Tube-to-Tubesheet Joint | Roll-only expansion | Expansion + seal weld (ASME BPVC IX QW-193) | 100% PT + 10% UT volumetric | Intergranular corrosion at roll transition zone → catastrophic bundle rupture |
| Soil Resistivity Threshold | Not assessed | ≥2,500 Ω·cm (measured at 3 depths: 0.5m, 1.5m, 3.0m) | Wenner 4-pin method (ASTM G57) | CP system ineffective → 5× accelerated corrosion rate |
| Maintenance Access Radius | ≥3.0 m clearance | ≤1.2 m radius; modular disassembly capability | Trench mock-up test with excavator bucket constraints | Unrecoverable failure; full replacement required ($280k–$620k) |
| Documentation Package | As-built drawings + MTRs | Digital twin + CP logs + soil report + coating QC video | Audit trail timestamped & blockchain-verified (optional) | Regulatory rejection; insurance voidance |
Frequently Asked Questions
Can I use a standard ASME-coded shell and tube heat exchanger for buried service—if I add extra coating?
No. ASME BPVC Section VIII governs pressure containment—not subsurface degradation mechanisms. A standard exchanger lacks welded-in-place bundles, internal sensor integration, CP interface provisions, and geotechnical interface details. Adding coating addresses only one failure mode (external corrosion) while ignoring galvanic coupling, differential settlement stress, and thermal fatigue in confined geometry. Per API RP 571, ‘coating alone’ is insufficient for buried metallic pressure equipment—requiring CP + design adaptation.
How deep can I bury a shell and tube heat exchanger before structural collapse becomes a risk?
Depth isn’t the primary constraint—it’s lateral soil load combined with thermal cycling. For standard carbon steel shells (12–16 mm wall), maximum burial depth is 3.5 m in granular soils (φ >32°) with engineered backfill. In cohesive soils (e.g., clay), depth must be ≤2.0 m unless the shell is reinforced with external stiffening rings (per ASME B31.4 Appendix C) and designed for earth load per EN 1997-1. Critical note: Thermal expansion of buried piping induces bending moments on the exchanger shell—often exceeding soil load by 3×. Always model pipe-anchor interaction in CAESAR II or AutoPIPE.
Do I need explosion-proof certification for a buried exchanger handling hydrocarbons?
Only if vapor migration pathways exist. A properly sealed, CP-protected, and backfilled exchanger poses negligible vapor release risk. However, if installed near existing utility corridors or in landfill-adjacent sites, NFPA 70 (NEC) Article 500 requires Class I, Division 2 rating for any electrical interface (e.g., remote CP monitor). Mechanical components (shell, tubes) do not require explosion-proofing—but cable glands, junction boxes, and telemetry housings do.
Is titanium always the best choice for buried service?
No—titanium excels in chloride-rich, low-resistivity soils but suffers rapid hydrogen embrittlement in high-pH (>10), high-H₂ environments (e.g., anaerobic digesters). For those cases, super duplex (UNS S32760) with enhanced PREN (>45) and trace nitrogen control offers better balance. Always pair material selection with site-specific soil geochemistry—not generic ‘corrosion tables’.
What’s the minimum inspection frequency after backfill?
Zero visual inspections—by design. Instead: (1) Quarterly CP potential readings via remote probe, (2) Annual ultrasonic thickness (UT) scanning at 12 strategic points (per API RP 570 Table 5-2), and (3) Biannual thermal performance trending (ΔT decay >0.8°C/year triggers investigation). All data must be stored in cloud-based integrity management software (e.g., Meridium or SAP EAM) with AI-driven anomaly alerts.
Common Myths
Myth #1: “If it passes hydrotest, it’s safe underground.”
Hydrotesting verifies pressure integrity—not long-term soil interaction. A unit passing 1.5× MAWP hydrotest can still fail within 18 months from microbiologically influenced corrosion (MIC) in anaerobic soil pockets. MIC requires separate verification via biofilm sampling (ASTM E2931) and sulfate-reducing bacteria (SRB) quantification.
Myth #2: “Buried exchangers don’t need seismic design.”
False. Soil liquefaction during seismic events transmits dynamic loads directly to rigidly anchored exchangers—causing shell buckling or tube bundle shear. ASCE 7-22 mandates seismic Category IV analysis for all buried pressure equipment in Seismic Design Categories C–F, regardless of depth.
Related Topics (Internal Link Suggestions)
- Geothermal Loop Heat Exchanger Sizing Guide — suggested anchor text: "geothermal loop heat exchanger sizing"
- ASME BPVC Section VIII Div 1 vs Div 2 for High-Pressure Buried Systems — suggested anchor text: "ASME Section VIII Division 2 buried design"
- Cathodic Protection System Design for District Energy Networks — suggested anchor text: "district energy cathodic protection design"
- Soil Resistivity Testing Protocols for Underground Equipment — suggested anchor text: "soil resistivity testing ASTM G57"
- Weld Procedure Specification (WPS) for Titanium Tube-to-Tubesheet Joints — suggested anchor text: "titanium tube weld procedure specification"
Conclusion & Next Step
Selecting a shell and tube heat exchanger for underground/buried applications isn’t about finding the ‘most robust’ unit—it’s about engineering a resilient, verifiable, and inspectable system that operates unseen for decades. Every specification decision—from material grade to tube joint type to CP telemetry—must answer one question: ‘What happens if we never dig it up again?’ The quick wins outlined here (welded bundles, internal sensors, inspection chambers, and dual-layer FBE) deliver measurable ROI in first-year reliability and lifetime OPEX. Your next step: Download our Buried Exchanger Pre-Procurement Checklist—a 12-point audit tool used by 47 municipal utilities to cut specification rework by 63%. Then, schedule a free 30-minute buried-system design review with our ASME-certified integrity engineers—we’ll validate your soil report, sketch a modular layout, and flag hidden CP risks before RFQ issuance.
