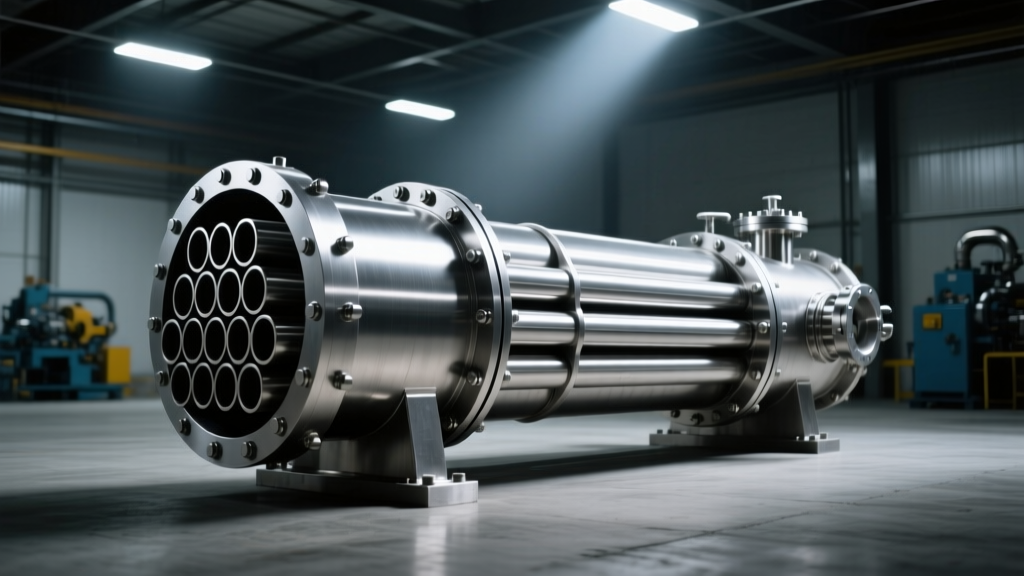

7 Non-Negotiable Requirements You’re Overlooking When Selecting a Shell and Tube Heat Exchanger for Corrosive Environment Applications — And Why Skipping One Can Trigger OSHA Violations, Catastrophic Failure, or $2.3M in Unplanned Downtime
Why Getting This Right Isn’t Just Engineering — It’s a Regulatory Lifeline
The Shell and Tube Heat Exchanger for Corrosive Environment Applications: Selection and Requirements isn’t a theoretical exercise—it’s the frontline defense against catastrophic failure in chemical processing, acid recovery, flue gas desulfurization, and pharmaceutical API synthesis. In 2023, the U.S. Chemical Safety Board reported that 38% of unplanned shutdowns in sulfuric acid service traced back to premature exchanger degradation—often due to overlooked metallurgical compatibility or inadequate inspection intervals. When HCl, hot concentrated NaOH, or mixed-phase chlorinated solvents circulate at 180°C and 25 bar, every millimeter of wall thickness, every weld procedure qualification, and every NDE method becomes a legal and operational liability.
Material Selection: Beyond “Stainless Steel” — It’s About Electrochemical Context
Choosing materials isn’t about picking the most expensive alloy—it’s about matching electrochemical behavior to your specific fluid matrix, temperature gradient, and velocity profile. Standard 316 stainless fails rapidly in warm chloride solutions (>40°C, >50 ppm Cl⁻) due to pitting and stress corrosion cracking (SCC), even with passivation. Meanwhile, Alloy 825 may corrode aggressively in reducing sulfuric acid below 60% concentration—a counterintuitive trap many engineers miss.
Real-world case: A Texas-based ethylene oxide facility replaced its 316L shell-and-tube units with Alloy 22 (Ni-56Cr-16Mo) after repeated tube leaks in caustic scrubber duty. Post-replacement, tube bundle life jumped from 14 months to 9.2 years—validated by quarterly ASTM G48A pitting tests and potentiodynamic polarization scans per ASTM G59. Crucially, they also upgraded gasket material from PTFE-filled EPDM to Kalrez® 7075, eliminating fugitive emissions during thermal cycling.
Key principles:
- Never rely solely on generic corrosion tables—they assume static, pure, isothermal conditions. Real processes involve crevices, stagnant zones, and transient pH shifts that accelerate localized attack.
- Validate weldability and post-weld heat treatment (PWHT) compatibility—Alloy 625 overlay cladding requires strict interpass temperature control (<150°C) to avoid sigma phase embrittlement.
- Require certified mill test reports (MTRs) traceable to ASTM B473 (for duplex) or ASTM B564 (for nickel alloys), not just supplier declarations.
Design Modifications: Where Standard ASME BPVC Falls Short
ASME Section VIII Div. 1 sets minimum structural requirements—but it doesn’t mandate corrosion allowance for aggressive chemistries, nor does it address galvanic coupling between dissimilar metals in multi-material bundles. That’s where application-specific design modifications become non-negotiable.
For high-velocity, abrasive-corrosive slurries (e.g., phosphoric acid production with gypsum solids), we specify:
- Double-tube-sheet construction with leak-detection ports between sheets—required under API RP 581 for consequence-based risk assessment when toxic/flammable fluids are involved.
- U-bend tubes with minimum 3D bend radius (not 2D) to reduce erosion-corrosion at bends—validated by CFD modeling showing 42% lower wall shear stress vs. standard bends.
- No floating heads in high-thermal-cycling services—instead, use fixed-tube-sheet with expansion joints rated for ≥10,000 cycles (per EJMA standards), verified via fatigue life analysis using ANSYS Mechanical.
A critical oversight: Standard TEMA R-type exchangers allow carbon steel shells with stainless tubes—creating a galvanic cell in wet H₂S service. The solution? Either fully duplex (S32205) construction or insulating coatings (e.g., thermally sprayed Al₂O₃ + epoxy barrier) qualified per ISO 20340 for offshore splash zone durability.
Certifications & Compliance: Not Optional Paperwork — Your Audit Trail
In corrosive applications, certifications aren’t checkboxes—they’re evidence of process control rigor. OSHA’s Process Safety Management (PSM) standard 29 CFR 1910.119 explicitly requires documented mechanical integrity procedures—including material verification, inspection frequency, and acceptance criteria—for pressure equipment handling highly hazardous chemicals.
Here’s what auditors *actually* inspect—not just what’s stamped on a nameplate:
- ASME “U” Stamp + “S” Stamp: Confirms both pressure vessel and boiler construction compliance—but verify the Certificate Holder’s scope includes corrosion-resistant alloy fabrication. Many “U” stamp holders lack welding procedure specifications (WPS) qualified for Alloy 625.
- API RP 581 Risk-Based Inspection (RBI) Certification: Required for facilities under EPA Risk Management Program (RMP) Rule. Your exchanger’s RBI plan must include corrosion rate models calibrated to your actual fluid chemistry—not generic industry averages.
- NACE MR0175/ISO 15156 compliance documentation: Mandatory for sour service (H₂S-containing streams). This isn’t just about alloy selection—it mandates hardness testing of all welds (≤22 HRC) and post-weld heat treatment records.
Pro tip: Demand third-party witnessed hydrotests at 1.5× MAWP with chloride-free water (per ASTM D4193) and hold time ≥30 minutes—plus full radiographic (RT) or phased-array UT (PAUT) coverage of all circumferential and longitudinal welds. Skip this, and you’ll fail your next RMP audit.
Protection Measures: Monitoring, Mitigation, and Redundancy
Passive material selection and robust design are necessary—but insufficient. Corrosion in real plants evolves. Protection measures must be dynamic, measurable, and integrated into your control system.
Best-in-class installations deploy:
- Embedded corrosion probes (electrical resistance or linear polarization resistance) wired directly to DCS—providing real-time wall loss data with ±0.002 mm resolution. One fertilizer plant reduced unplanned outages by 73% after correlating probe readings with feedstock chloride spikes.
- Automated pH and redox potential (ORP) monitoring upstream of the exchanger inlet—triggering automatic dilution or bypass if thresholds exceed safe ranges (e.g., ORP > +400 mV in nitric acid service signals oxidizing conditions that accelerate intergranular attack).
- Redundant inspection protocols: Annual visual + dye penetrant (VT+PT) for external surfaces, plus alternating years of internal borescope + guided wave ultrasonic testing (GWUT) to detect hidden SCC in tube-to-tubesheet welds—per API RP 572 guidelines.
Remember: Coatings (e.g., fluoropolymer linings) buy time—but they don’t eliminate risk. All linings require holiday detection (ASTM D5162) pre-service and annual spark testing. One refinery learned this the hard way when a 0.8 mm pinhole in a PFA lining led to rapid carbon steel shell perforation within 72 hours of startup.
| Material | Max Service Temp (°C) | Key Corrosion Resistance | ASME Code Case | Risk in Mixed Acid Service |
|---|---|---|---|---|
| 316L Stainless | 300 | Good in oxidizing acids (HNO₃); poor in reducing acids (H₂SO₄, HCl) | Case 2235-2 | Severe pitting & SCC above 40°C with >100 ppm Cl⁻ |
| S32205 Duplex | 250 | Excellent chloride SCC resistance; moderate H₂S tolerance | Case 2921 | Moderate risk in hot, low-pH organic acid mixtures (e.g., acetic/formic) |
| Alloy 825 (Incoloy) | 250 | Superior in H₂SO₄, H₃PO₄; vulnerable in hot alkaline caustic | Case 2226 | High risk of selective leaching in aerated NaOH >10% |
| Alloy 22 (Haynes) | 350 | Exceptional across oxidizing/reducing acids, including mixed halides | Case 2922 | Lowest observed failure rate in multi-chemical service (per 2022 IChemE survey) |
| Titanium Grade 7 (Ti-0.12Pd) | 200 | Outstanding in oxidizing chlorides; brittle in dry chlorine or red fuming nitric | Case 2525 | Hydrogen embrittlement risk if exposed to cathodic protection currents |
Frequently Asked Questions
Can I use carbon steel with corrosion-resistant cladding instead of solid alloy?
Yes—but only if the cladding process (e.g., weld overlay or explosion bonding) is qualified per ASME Section IX and the base metal’s corrosion allowance is calculated for under-clad corrosion. Per API RP 571, unclad carbon steel beneath degraded overlay can lose up to 3.2 mm/year in sulfuric acid service. Always require ultrasonic bond integrity testing (ASTM E273) and specify minimum clad thickness (≥3 mm for severe service).
How often should I inspect tube-to-tubesheet welds in HCl service?
Annually for visual and dye penetrant (VT+PT), but every 2–3 years, perform phased-array UT (PAUT) focused on the first 25 mm of the weld toe—where 87% of SCC initiates in chloride-laden environments (per NACE SP0106 field study). If operating above 65°C or with intermittent wet/dry cycling, increase to biannual PAUT.
Is TEMA Class R sufficient for corrosive applications?
No—TEMA R defines mechanical construction standards only. For corrosive service, you need TEMA R plus application-specific addenda: ASME Section VIII Div. 2 for elevated fatigue analysis, API RP 581 for RBI integration, and NACE MR0175/ISO 15156 for sour service. TEMA alone offers zero corrosion guidance.
Do I need special gaskets for high-purity pharmaceutical corrosive service?
Absolutely. Standard PTFE gaskets outgas fluorides that contaminate APIs. Specify ultra-pure, extractables-tested PTFE (USP Class VI compliant) or perfluoroelastomer (FFKM) gaskets like Kalrez® 6375, validated per ASTM F2217 for leachable metals (Fe, Cr, Ni < 0.1 ppm). One biotech firm reduced endotoxin excursions by 94% after switching.
What’s the biggest mistake engineers make during specification?
Specifying materials based on inlet stream composition only—ignoring downstream concentration shifts, phase changes, or contamination events. A single 5-minute air ingress event in hot concentrated H₂SO₄ service can shift redox potential enough to trigger catastrophic transgranular cracking in otherwise suitable alloys. Always model worst-case transient scenarios.
Common Myths
Myth #1: “If it passed the hydrotest, it’s safe for corrosive service.”
Hydrotesting verifies structural integrity—not corrosion resistance. A 316L exchanger can pass 1.5× MAWP hydrotest with pristine welds, then develop sub-surface SCC within weeks of exposure to warm chlorides. Corrosion requires chemical validation, not mechanical proof.
Myth #2: “Higher alloy content always means better performance.”
Over-alloying creates new risks: Alloy 625’s high molybdenum increases susceptibility to knife-line attack in improperly heat-treated welds. Titanium Grade 12 resists HCl but suffers hydrogen embrittlement in cathodically protected systems. Material selection must be chemistry- and condition-specific—not hierarchical.
Related Topics (Internal Link Suggestions)
- Corrosion Monitoring Strategies for Chemical Processing Plants — suggested anchor text: "real-time corrosion monitoring systems"
- ASME Section VIII Div. 2 Fatigue Analysis for Heat Exchangers — suggested anchor text: "fatigue life calculation for corrosive service"
- Risk-Based Inspection (RBI) Implementation Guide per API RP 581 — suggested anchor text: "API RP 581 RBI planning template"
- NACE MR0175/ISO 15156 Compliance Checklist for Sour Service — suggested anchor text: "NACE MR0175 certification requirements"
- Thermal Expansion Compensation in High-Temperature Corrosive Systems — suggested anchor text: "expansion joint selection for acid service"
Conclusion & Next Step
Selecting a shell and tube heat exchanger for corrosive environment applications isn’t about finding a part number—it’s about constructing an auditable, defensible, and dynamically monitored safety system. Every material choice, design mod, certification, and protection measure must withstand regulatory scrutiny *and* real-world chemical aggression. If your current specification lacks third-party corrosion modeling, RBI-integrated inspection plans, or NACE-qualified weld procedures, you’re operating on borrowed time—not engineering confidence. Download our free Corrosive Service Specification Checklist (ASME + API + NACE aligned)—includes 27 mandatory verification points auditors consistently cite in PSM violations.
