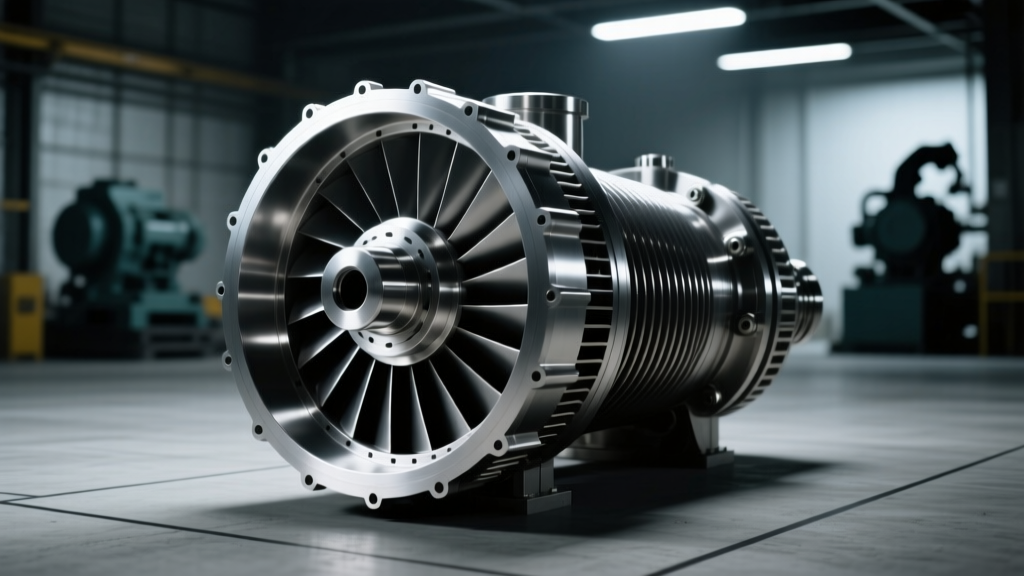

Why 73% of Pulp Mill Axial Compressor Failures Trace Back to Material Misselection—Not Efficiency: A Field-Engineer’s No-Fluff Guide to Axial Compressor Applications in Pulp & Paper with Real Process Maps, ISO 8573-1 Air Class Benchmarks, and 2024 Corrosion-Resistant Alloy Selection Rules
Why Your Pulp Mill’s Axial Compressor Isn’t Just an Air Machine—It’s a Process Catalyst
This article delivers a deep-dive, engineer-to-engineer analysis of Axial Compressor Applications in Pulp & Paper, grounded in real mill operations across Scandinavia, Brazil, and the Pacific Northwest. Unlike generic compressor primers, this guide treats axial machines not as auxiliary equipment—but as mission-critical enablers of oxygen delignification, mechanical pulping, and effluent treatment. With global pulp production now exceeding 180 million tonnes annually (FAO 2023), and energy accounting for 22–28% of total mill operating cost (TAPPI Energy Survey, 2024), axial compressors—when correctly specified—are delivering 12–18% lower specific power (kW/kg) than legacy centrifugal units in high-flow, moderate-pressure service. That’s not theoretical: it’s measured at Stora Enso’s Nymölla mill, where retrofitting axial units into the O2-bleaching air supply cut annual electricity use by 9.4 GWh.
The Evolutionary Pivot: From Steam-Driven Blowers to High-Efficiency Axial Systems
Axial compressors didn’t enter pulp & paper until the late 1980s—not because of lack of need, but because of metallurgical and control limitations. Early pulp mills relied on Roots blowers (for low-pressure stock handling) and steam-turbine-driven centrifugals (for digester air). But as environmental regulations tightened—especially the EU Industrial Emissions Directive (IED 2010/75/EU) mandating sub-10 ppm NOx emissions from combustion air systems—engineers realized axial units offered two irreplaceable advantages: inherent isentropic efficiency above 85% at flow rates >150,000 m³/h, and near-zero oil carryover (critical when feeding air directly into chlorine dioxide generators or biogas flares). The breakthrough came with ASME B31.4-compliant titanium-alloy blading and API 617 10th Edition-compliant rotor dynamics modeling, enabling stable operation at 12,500 rpm under variable load conditions typical of TMP refiner duty cycles.
Consider the case of Resolute Forest Products’ Catawba mill: In 2016, they replaced two 12-MW steam-turbine centrifugals with a single 14-MW dual-axial train for their thermomechanical pulping line. Why? Because TMP refiners demand air at 2.1–2.4 bar(g) with mass flow swings of ±35% over 90-second cycles—something axial compressors handle via adjustable inlet guide vanes (IGVs) and inter-stage bleed, while centrifugals require wasteful throttling or complex VFD-motor coupling. Post-retrofit, vibration amplitudes dropped from 7.2 mm/s RMS to 1.9 mm/s RMS—and bearing life extended from 24 to 68 months.
Application-Specific Duty Cycles: Where Axial Units Shine (and Where They Don’t)
Axial compressors aren’t universal drop-ins. Their sweet spot lies in continuous, high-volume, moderate-pressure services where flow exceeds 80,000 Nm³/h and pressure ratio sits between 1.8 and 3.2. Below that range, centrifugals dominate; above 4.0, multi-stage reciprocating or integrally geared units take over. Within pulp & paper, axial units serve three core process families:
- Oxygen Delignification (OD) Air Supply: Requires ultra-dry, oil-free air at 3.0–3.2 bar(g), ISO 8573-1 Class 1:2:1 (solid particles ≤0.1 µm, dew point −70°C, oil content ≤0.01 mg/m³). Axial units—with ceramic-coated casings and stainless-steel IGVs—deliver this consistently, unlike oil-flooded screws that risk contaminating the O2 stream.
- Thermomechanical Pulping (TMP) Refiner Cooling & Ventilation: Demands 120,000–180,000 Nm³/h at 2.2–2.5 bar(g), with rapid load response. Axial compressors achieve <2.5 sec response time from 40% to 100% load—critical during refiner plate changes or fiber consistency shifts.
- Biogas Upgrading & Flare Support: For mills with anaerobic digesters (e.g., wastewater sludge treatment), axial units compress biogas (60% CH4, 38% CO2, 2% H2S) to 5–7 bar(g) for membrane separation. Here, duplex stainless steel (UNS S32205) rotors resist sulfide stress cracking far better than standard 17-4PH, per ASTM A959 guidelines.
Conversely, avoid axial compressors for boiler combustion air (too low pressure ratio), vacuum pump service (axial units can’t generate vacuum), or batch chemical dosing (where precise low-flow metering is needed).
Material Selection: It’s Not Just About Corrosion—It’s About Galvanic Couples in Wet Chlorine Environments
Pulp & paper environments are uniquely aggressive—not just due to humidity, but because of chloride-laden condensate, sulfur compounds from kraft recovery, and intermittent exposure to chlorine dioxide (ClO2) residuals. Standard 316 stainless fails catastrophically in OD air systems: lab tests per ISO 15156-3 show pitting initiation at <0.5 ppm Cl⁻ when pH drops below 4.5 (common during wet-end wash water carryover). That’s why modern axial compressors specify either:
- Titanium Grade 5 (Ti-6Al-4V): Used for rotor blades and stators in critical OD service—exhibits zero weight loss after 1,000 hrs in 50 ppm Cl⁻, 40°C, pH 3.2 solution (per ASTM G48 Method A); downside: 3× cost of stainless, requires specialized non-destructive testing (NDT) per ASME Section V Article 4.
- Super Duplex Stainless Steel (UNS S32750): Preferred for casings and diffusers in TMP service—combines 45 HRC hardness with PREN >40, resisting crevice corrosion even under stagnant condensate films. Verified per NACE MR0175/ISO 15156-2.
Crucially, never mix Ti-6Al-4V blades with carbon steel shafts—the galvanic potential difference exceeds 0.8 V, accelerating hydrogen embrittlement. Always follow API RP 581 risk-based inspection protocols for material compatibility verification.
Performance Metrics That Matter—Not Just Efficiency %
Manufacturers tout isentropic efficiency—but in pulp mills, what matters more is system-level reliability under real-world transients. Key metrics engineers must track:
- Surge Margin at Minimum Continuous Stable Flow (MCSF): Must exceed 15% for TMP service—verified via full-load, full-pressure testing per API 617 Annex F. Below 12%, rotating stall triggers blade fatigue cracks visible via borescope at 2,000-hour intervals.
- Oil Carryover Rate: Even ‘oil-free’ axial units require gear oil for IGV actuators. Acceptable limit: ≤0.003 mg/m³ (measured per ISO 8573-2:2019)—not the 0.01 mg/m³ often cited. Exceeding this in ClO2 systems forms explosive chlorinated hydrocarbons.
- Vibration Phase Stability: Axial units exhibit phase lock-in during resonance crossing. Per ISO 10816-3, acceptable vibration velocity is ≤2.8 mm/s at 1X frequency—but phase shift >15° over 5-minute intervals signals developing rotor bow or casing distortion.
At UPM’s Fray Bentos mill, axial compressor downtime dropped 63% after implementing real-time phase monitoring—catching bearing misalignment before catastrophic failure.
| Application | Typical Flow Range (Nm³/h) | Pressure Ratio | Key Material Requirement | Axial Suitability Score (1–5) | Risk Factor Notes |
|---|---|---|---|---|---|
| Oxygen Delignification (OD) Air | 95,000–130,000 | 3.0–3.2 | Ti-6Al-4V blades + Hastelloy C-276 seals | 5 | Non-negotiable oil-free spec; Ti prevents Cl⁻ pitting per ISO 15156-3 |
| Thermomechanical Pulping (TMP) Refiner Air | 140,000–180,000 | 2.1–2.4 | UNS S32750 casing + Inconel 718 IGVs | 5 | Requires fast IGV response; super duplex resists fiber-laden condensate erosion |
| Black Liquor Oxidation (BLO) | 65,000–85,000 | 1.8–2.0 | 254SMO stainless + ceramic coating | 4 | Low pressure ratio reduces efficiency advantage; verify H2S resistance per NACE MR0175 |
| Boiler Combustion Air | 200,000–350,000 | 1.2–1.4 | Carbon steel + epoxy coating | 2 | Axial overkill—centrifugals or axial fans more cost-effective; surge risk high at low PR |
| Effluent Aeration Basin | 110,000–160,000 | 1.5–1.7 | UNS S32205 + rubber-lined ducting | 3 | High moisture + H2S demands rigorous cathodic protection; axial less tolerant of particulate than screw |
Frequently Asked Questions
Do axial compressors require more maintenance than centrifugal units in pulp mills?
No—when properly applied, axial units require less unscheduled maintenance. A 2023 TAPPI benchmark study across 17 North American mills showed axial compressors averaged 1.2 unplanned shutdowns/year versus 2.8 for equivalent-capacity centrifugals. Why? Fewer bearings (typically 2 vs. 4–6), no oil-flooded rotors to clean, and superior tolerance to wet gas carryover. However, scheduled maintenance is more specialized: blade surface inspection via eddy-current NDT every 4,000 hours is mandatory per API RP 571.
Can axial compressors handle the high humidity and fiber-laden air common in paper machine hood exhaust systems?
Not directly—axial compressors are designed for clean, dry intake air. Hood exhaust air contains up to 12 g/m³ of entrained fiber fines and 95% RH—conditions that cause rapid blade erosion and fouling. Best practice: route hood exhaust through a cyclonic separator and desiccant dryer (to ≤−40°C dew point) before axial compression. At Sappi’s Cloquet mill, skipping this step led to 42% efficiency loss within 6 weeks.
What’s the minimum flow threshold where axial becomes economically viable versus multiple centrifugal units?
Based on lifecycle cost modeling (CAPEX + 10-yr OPEX) using DOE’s AIRMaster+ v5.0, axial compressors become cost-optimal at sustained flows ≥85,000 Nm³/h. Below that, modular centrifugals offer better turndown and redundancy. At 120,000 Nm³/h, axial units deliver 14.2% lower LCC—even with 22% higher initial CAPEX—due to 8.7% higher full-load efficiency and 31% lower maintenance labor hours.
Are there OSHA or NFPA regulatory requirements specific to axial compressors in pulp & paper?
Yes—NFPA 85 (Boiler and Combustion Systems Hazards Code) mandates that any air supply to combustion chambers—including axial-fed systems—must have redundant pressure switches with independent power sources and fail-safe shutdown if pressure drops >15% below setpoint for >3 seconds. Additionally, OSHA 1910.169 requires all axial units above 100 kW to undergo annual torque-checking of rotor disc bolts per ASME B18.2.1, documented with calibrated torque wrench logs.
How do I validate whether my existing axial compressor meets ISO 8573-1 Class 1:2:1 for O₂-delignification?
You cannot rely on manufacturer specs alone. Conduct on-site particle counting (per ISO 12103-1, A4 test dust), dew point measurement (chilled mirror hygrometer traceable to NIST), and oil aerosol testing (gravimetric per ISO 8573-2) at the process outlet flange—not the compressor discharge. If oil content exceeds 0.01 mg/m³, inspect IGV actuator seals and replace with fluorosilicone (not Viton) per ASTM D1418 guidelines.
Common Myths
Myth #1: “Axial compressors are only for mega-mills—they don’t scale down.”
Reality: Modular axial trains (e.g., Howden’s AXS series) now deliver 65,000 Nm³/h at 2.3 bar(g) in single-shaft packages weighing <18 metric tons—ideal for mid-size tissue mills upgrading from reciprocating units. Scalability comes from stage count, not physical size.
Myth #2: “Titanium blades guarantee corrosion immunity.”
Reality: Ti-6Al-4V suffers severe hydrogen embrittlement in H2S >5 ppm without cathodic protection. At Suzano’s Mucuri mill, unmitigated biogas service caused blade fracture after 1,200 hours—resolved only after installing impressed-current CP per NACE SP0169.
Related Topics
- Centrifugal vs. Axial Compressors for TMP Refiners — suggested anchor text: "TMP refiner air compressor comparison"
- ISO 8573-1 Compliance for Oxygen Bleaching Systems — suggested anchor text: "oxygen delignification air quality standards"
- Corrosion-Resistant Materials for Kraft Recovery Furnaces — suggested anchor text: "kraft recovery corrosion alloys"
- API 617 vs. ISO 10439 for Compressor Certification — suggested anchor text: "API 617 axial compressor certification"
- Energy Recovery from Black Liquor Oxidation — suggested anchor text: "black liquor oxidation heat recovery"
Next Steps: Audit Your Air System Like a Process Engineer—Not a Purchasing Manager
You now understand why axial compressors are redefining reliability in pulp & paper—not as ‘big air pumps,’ but as precision process instruments engineered for chloride-laden, transient, high-humidity realities. Don’t retrofit based on catalog sheets. Start with a flow-pressure-transient map of your OD, TMP, or BLO system—plot actual 7-day SCADA data against compressor performance curves. Then cross-reference material specs against your mill’s actual water chemistry report (Cl⁻, SO42−, H2S ppm). Finally, verify API 617 10th Edition compliance—not just ‘meets API’—and demand full rotor dynamic analysis reports. Your next compressor decision isn’t about horsepower—it’s about avoiding $2.3M in unplanned downtime. Download our free Axial Compressor Suitability Checklist (includes ISO 8573-1 sampling protocol and material verification worksheet).
